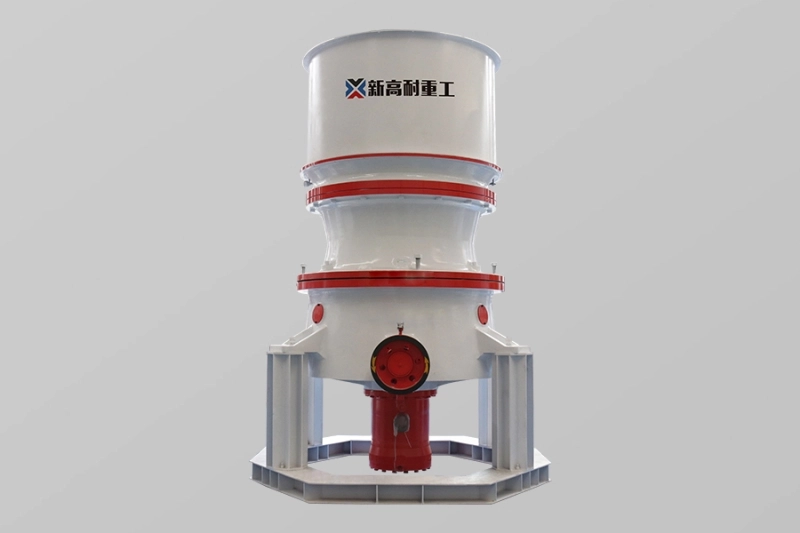

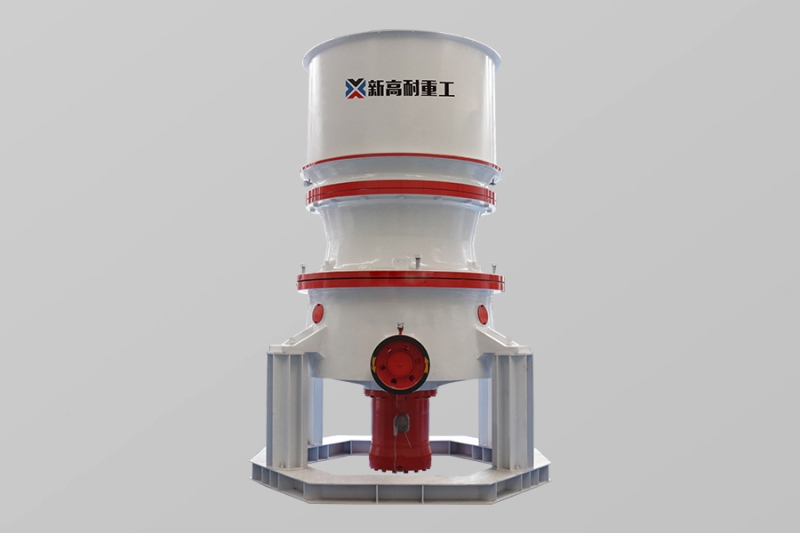

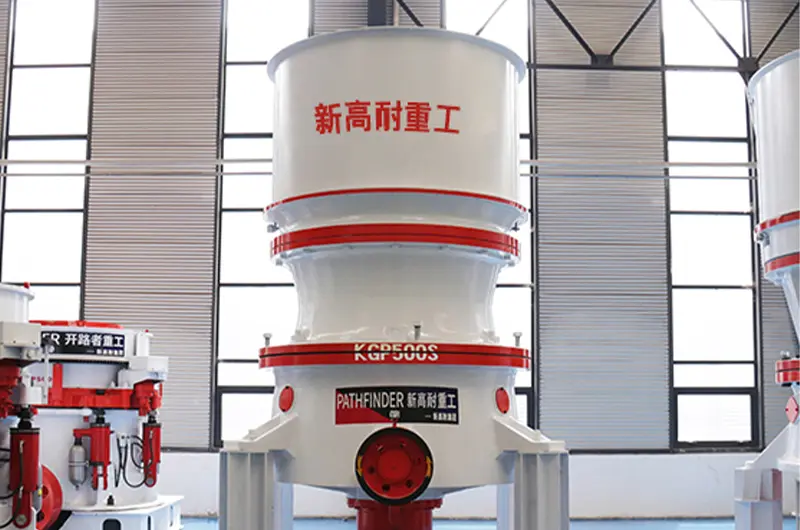

XGP Series Single Cylinder Hydraulic Cone Crusher

CAPACITY

35-1400t/h

FEED SIZE

≤420mm

Application areas：XGP series single-cylinder hydraulic cone crusher is widely used in the secondary crushing of materials in mining, chemical industry, roads and bridges, construction and other fields.

Applicable materials：XGP series single-cylinder hydraulic cone crusher is a new type of intelligent cone crusher, suitable for fine crushing of various hard ores such as granite, river pebbles, iron ore, and non-ferrous metal ores.

GET A QUOTE CHAT NOW PDF Download

Introduction
Advantages
Working principle
Parameters

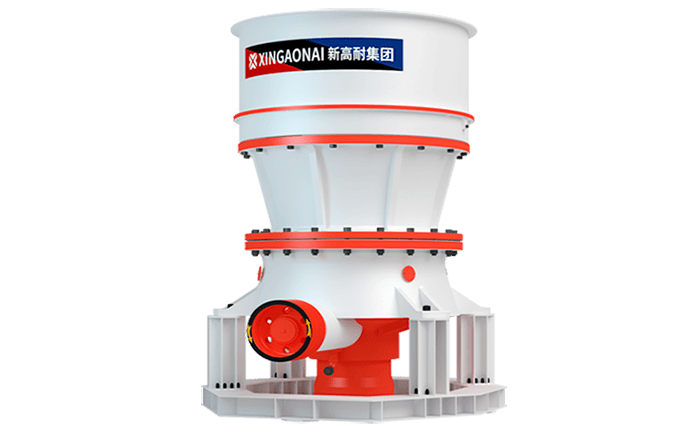

Product Overview

XGP single-cylinder hydraulic cone crusher is a combination of mechanical, hydraulic, automation, intelligent control and other technologies. It is suitable for medium and fine crushing of medium-hard materials. It has simple and reliable structure, low failure rate, low production cost and strong operation stability. With the advantages of convenient maintenance, it is widely used in metallurgy, construction, hydropower, transportation, building materials and other industrial fields, and occupies an important share in the market.

Key Advantages

Advanced Hydraulic Control System

The equipment is equipped with a single-cylinder hydraulic system that enables precise adjustment of the discharge opening, as well as overload protection and automatic clearing of the crushing chamber, improving operational safety and efficiency.

High Crushing Efficiency & Better Particle Shape

Adopting the lamination crushing principle and optimized cavity design, the crusher produces uniform particle size with a high proportion of cubic-shaped products, which is ideal for high-quality aggregates.

Simple Structure & Easy Maintenance

Compared with multi-cylinder cone crushers, the single-cylinder design is more compact and has fewer components, making maintenance easier, reducing downtime, and lowering operating costs.

Stable Performance

Built with high-strength materials and wear-resistant parts, the XGP cone crusher offers excellent durability. Its reliable structure ensures stable operation even under heavy-duty working conditions.

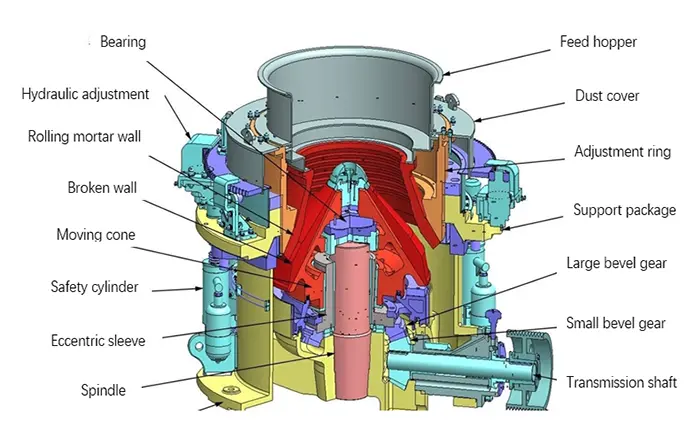

Working Principle

The rotation of the motor drives the pulley or coupling, the drive shaft and the conical part to make the eccentric shaft do periodic swinging motion under the axis line. After the material enters the crushing cavity from the feed port, it is squeezed, ground and kneaded by the mutual impact of the eccentric shaft and the wall of the rolling socket to produce crushing effect. The hydraulic insurance system can remove the fault objects from the top of the support sleeve and the fixed cone through hydraulic pressure when the machine has an iron fault or a stuffy car.

Technical Parameters

Model	Type	Feed port (mm)	Max feed size (mm)	Discharge port size (mm)	Motor power (kw)	Host weight (kg)	Capacity (tph)
XGP100	A	150	120	7-39	90	5800	35-135
	B	130	105
	C	100	85
XGP200	A	225	180	12-45	200-220	12700	85-350
	B	150	120
	C	80	60
XGP300	A	225	180	10-50	250-280	16700	140-490
	B	150	125
	C	80	60
XGP500	A	280	220	12-45	315-355	27000	245-715
	B	150	125
	C	100	80

Model	Type	Feed port (mm)	Max feed size (mm)	Discharge port size (mm)	Motor power (kw)	Host weight (kg)	Capacity (kg)
XGP100S	A	320	250	35-100	75-90	9500	140-520
	B	250	210
XGP200S	A	340	280	35-105	160-200	13400	160-610
	B	250	210
XGP300S	A	380	320	35-100	220-250	18200	250-870
	B	280	240
XGP500S	A	500	420	45-105	280-315	32700	300-1400
	B	380	320

We are here waiting for you

Our professional team can tailor the solution to suit your needs and answer your questions

Contact Engineer

Frequently Asked Questions

The single-cylinder hydraulic cone crusher is designed for secondary and tertiary crushing of hard and medium-hard rocks such as granite, basalt, iron ore, and river pebble. It delivers uniform particle size, making it ideal for aggregate production lines and mine processing plants.

The hydraulic system controls the adjustment of the discharge opening and provides overload protection. When uncrushable material (tramp iron) enters the crushing chamber, the hydraulic cylinder automatically releases pressure to protect the machine, then resets automatically — minimizing downtime.

Feed size typically ranges from 35mm to 300mm depending on the model. Output capacity ranges from 45 t/h to 700 t/h. Please contact us with your specific material and production requirements for an accurate model recommendation.

The discharge opening (CSS) is adjusted via the hydraulic adjustment system on the control panel, which allows precise and easy adjustment without stopping the machine. This helps you achieve the desired product granularity quickly.

Regular maintenance includes checking hydraulic oil levels and quality, inspecting the mantle and concave for wear, lubricating the eccentric shaft, and clearing the crushing chamber after shutdown. We recommend a full inspection every 500 operating hours.
