Stone Crusher

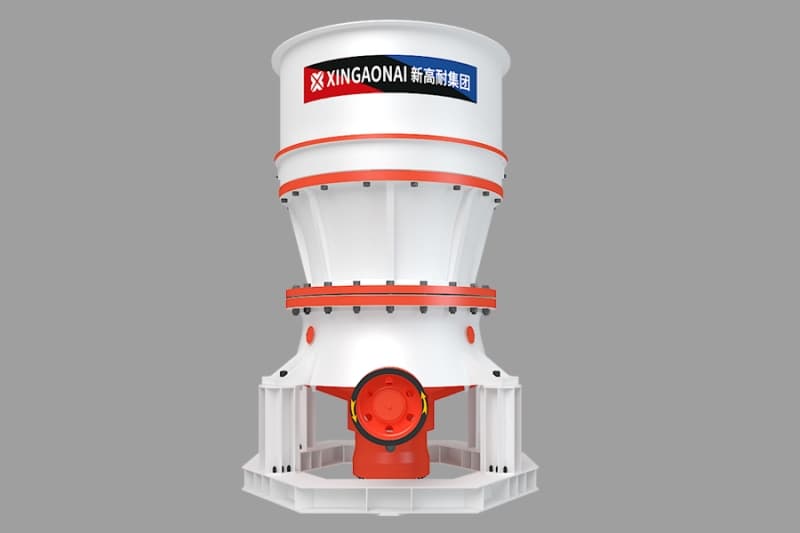

XCS Series Single Cylinder Hydraulic Cone Crusher

CAPACITY

78-1050t/h

FEED SIZE

≤560mm

Application areas：sand and gravel crushing, mine crushing, building stone crushing, chemical production, roadbed construction, infrastructure construction, etc.

Applicable materials：river pebble, granite, basalt, iron ore, quartzite and other medium-hard hard rocks.

GET A QUOTE CHAT NOW PDF Download

XCS Series Single Cylinder Hydraulic Cone Crusher

Introduction
Advantages
Working principle
Parameters

Product Overview

Key Advantages

Structural optimization

The utilization rate of wearing parts is high, and the main shaft can withstand greater crushing force and greater stroke. High-strength cast steel frame, alloy material spindle.

Integrated design

The integrated design of hydraulic lubrication realizes overload protection and hydraulic adjustment, and is convenient for maintenance.

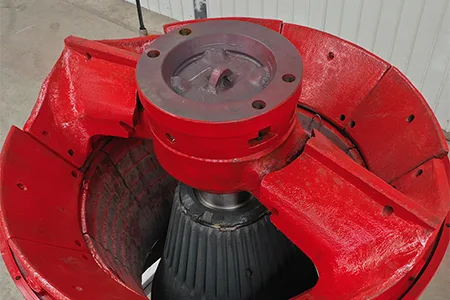

Lifting cone

The moving cone can be raised and lowered by a single hydraulic cylinder, which can realize various functions such as adjustment of the discharge opening, cleaning, overload protection, etc. The medium and fine crushing of various cavity types can be realized only by replacing the fixed cone.

High productivity

The special crushing cavity has a large processing capacity, which ensures that the crushing effect is not affected by the wear of the liner while the lamination crushing efficiency is high.

Working Principle

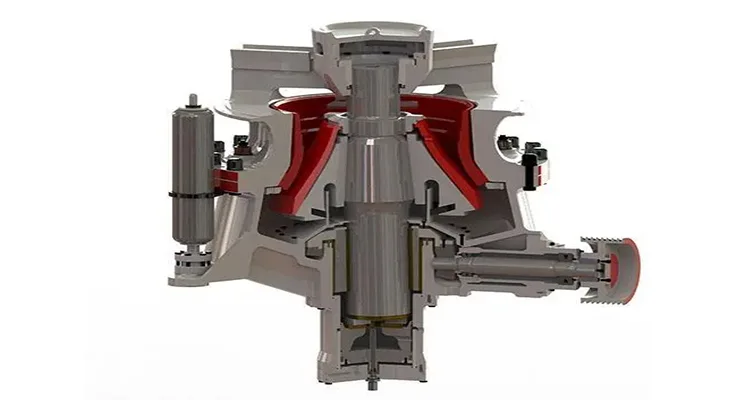

Working principle of single-cylinder hydraulic cone crusher The motor drives the small bevel gear to rotate through the motor wheel, belt and pulley, and the small bevel gear drives the large bevel gear to rotate to make the eccentric sleeve rotate. At this time, the main shaft drive cone installed in the eccentric sleeve moves with the rotation of the eccentric sleeve, so that the crushing wall is sometimes close to and sometimes away from the rolling wall, so as to achieve the purpose of crushing materials.
