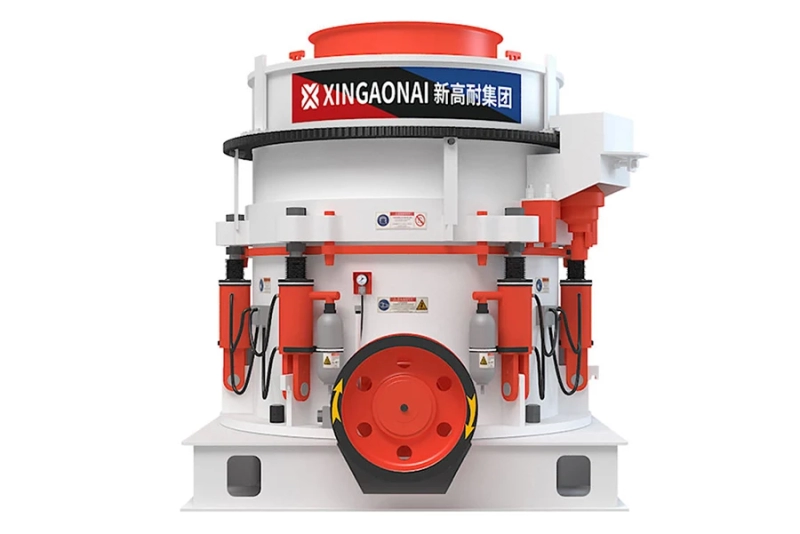

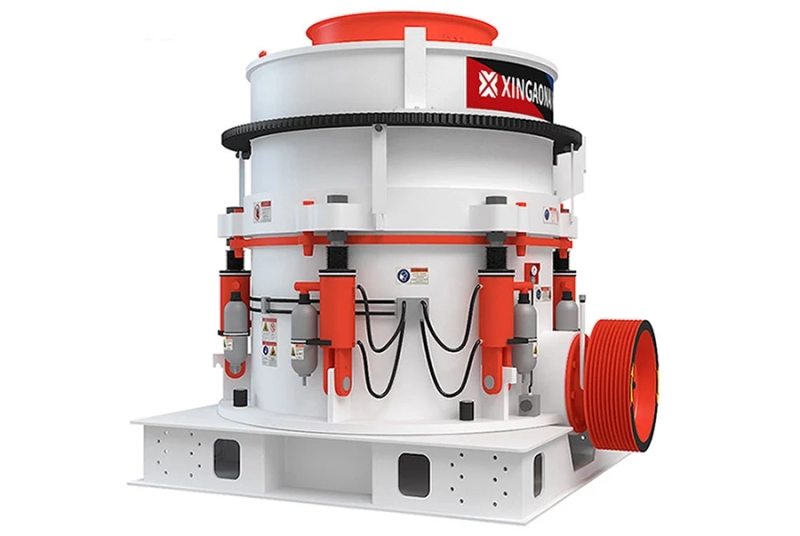

XHP Series Multi-Cylinder Hydraulic Cone Crusher

CAPACITY

90-1200t/h

FEED SIZE

≤353mm

Application areas：XHP series multi-cylinder hydraulic cone crusher is widely used in the secondary crushing of materials in mining, chemical industry, roads and bridges, construction and other fields.

Applicable materials：XHP series multi-cylinder hydraulic cone crusher is suitable for fine crushing of various hard ores such as granite, river pebbles, iron ore, and non-ferrous metal ores.

GET A QUOTE CHAT NOW PDF Download

Technical Parameters

Model	Type	Standard		Short		Power (kw)	Capacity (tph)
		Max (mm)	Min (mm)	Max (mm)	Min (mm)
		Max (mm)	Min (mm)	Max (mm)	Min (mm)
XHP200	BC					160	90-250
	C	185	19	76	10
	M	125	17	54	6
	F	95	13	23	6
	EF			10	5
XHP300	BC	230	25			220	115-440
	C	210	20	75	10
	M	150	15	50	8
	F	105	10	20	6
	EF			20	6
XHP400	BC	295	30			315	140-630
	C	250	25	90	10
	M	195	20	50	8
	F	110	14	40	6
	EF			30	6
XHP500	BC	330	30			400	175-790
	C	285	25	90	13
	M	200	20	55	10
	F	133	16	40	8
	EF			35	6
XHP800	BC	353	32			630	260-1200
	C	297	32	155	13
	M	267	25	92	10
	F	219	16	33	6
	EF

Frequently Asked Questions

The multi-cylinder design offers more precise discharge opening adjustment, stronger holding force, and better adaptability to varying material hardness. It is especially suited for high-capacity secondary and tertiary crushing of very hard materials like diabase and quartzite.

It performs best with dry or slightly moist materials. For sticky or high-clay-content materials, a pre-screening step is recommended to avoid clogging in the crushing chamber and maintain efficiency.

We offer multiple cavity types including Extra Coarse (EC), Coarse (C), Medium (M), Fine (F), and Extra Fine (EF). The right cavity type depends on your feed size and target output size. Our engineers can help you select the optimal configuration.

Yes. The multi-cylinder hydraulic cone crusher works efficiently in both open and closed-circuit systems. Paired with a vibrating screen, it forms an ideal closed-circuit crushing loop for precise final product gradation.

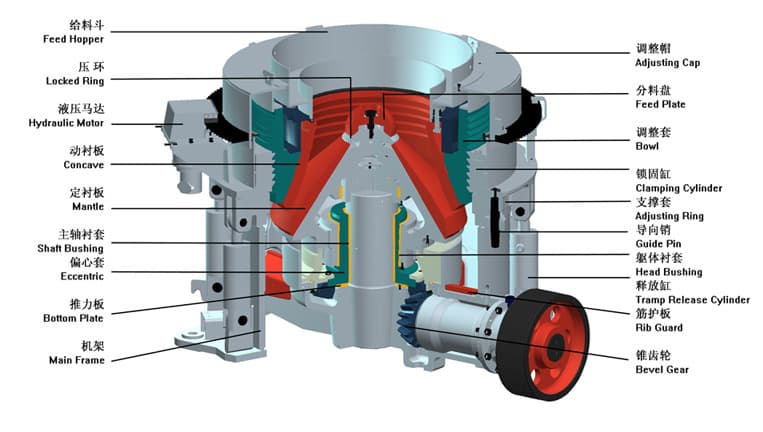

The mantle and concave are made from high manganese steel (Mn18Cr2 or customized alloys). Depending on material abrasiveness and feed conditions, they typically last 800–2,000 operating hours. We provide original spare parts with fast delivery worldwide.
