Gyratory Crusher

CAPACITY

310-3200t/h

FEED SIZE

≤1600mm

Application areas：Gyratory crusher is a large-scale primary crushing equipment, widely used in the coarse crushing of materials in mining, chemical industry, roads and bridges, construction and other fields.

Applicable materials：Gyratory crusher is a type of cone crusher and is suitable for primary crushing of various hard ores such as granite, river pebbles, iron ore, and non-ferrous metal ores.

GET A QUOTE CHAT NOW PDF Download

Introduction
Advantages
Working principle
Parameters

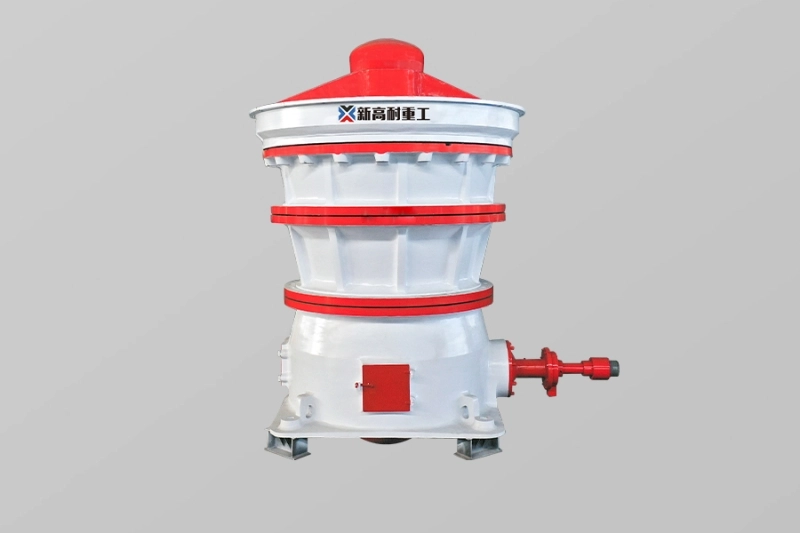

Product Overview

The Gyratory Crusher is a high-capacity primary crushing equipment widely used in mining, metallurgy, construction, and aggregate industries. It is designed to handle large-sized materials and deliver efficient size reduction in the first stage of crushing.

With its robust structure and advanced design, the gyratory crusher is ideal for processing hard and abrasive ores such as granite, basalt, and iron ore, making it an essential solution for large-scale crushing operations.

Key Advantages

High Crushing Capacity & Continuous Operation

The gyratory crusher adopts a continuous crushing principle, allowing materials to be processed without interruption. This significantly improves production efficiency and ensures higher throughput than traditional jaw crushers.

Ability to Handle Large Feed Size

Featuring a large feed opening and deep crushing chamber, the equipment can directly accept oversized rocks from mining operations, reducing the need for pre-crushing and simplifying the production process.

Stable Performance & Uniform Product Size

The eccentric-driven mantle generates a steady compressive force, ensuring consistent crushing and producing more uniform particle sizes, which is beneficial for downstream processing.

Durable Structure & Low Operating Cost

Built with heavy-duty components and wear-resistant liners, the gyratory crusher offers long service life and reliable operation. Its efficient crushing mechanism reduces energy consumption and maintenance frequency, lowering overall operating costs.

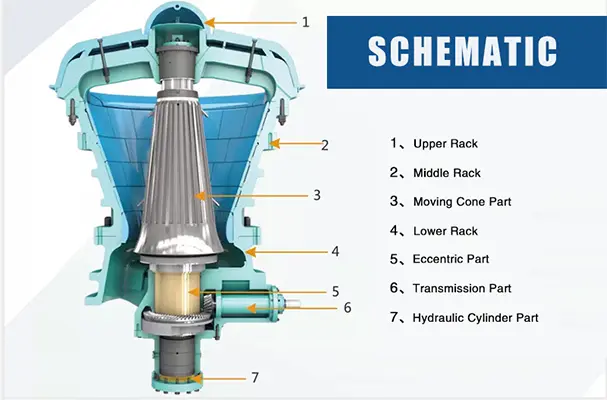

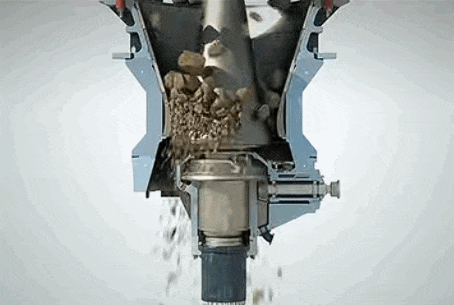

Working Principle

Gyratory crusher integrates mechanical, hydraulic, electrical, automation, intelligent control and other technologies, benchmarking the international advanced gyratory crusher technology, it is a new type of coarse crushing equipment that can provide users with efficient, intelligent and super-capacity solutions, compared with the traditional gyratory crusher, its performance is more excellent.

Technical Parameters

Model	Feeding port size (mm)	Discharge size (mm)	Larger feeding size (mm)	Adjustment range (mm)	Capacity (tph)
X0710	700	100	580	100-130	310-400
X0909	900	90	750	90-120	380-510
X0913	900	130	750	130-160	625-770
X0917	900	170	750	170-190	815-910
X1216	1200	160	1000	160-190	1250-1480
X1221	1200	210	1000	210-230	1560-1720
X1417	1400	170	1200	170-200	1750-2060
X1422	1400	220	1200	210-230	2160-2370
X1618	1600	180	1350	180-210	2400-2800
X1623	1600	230	1350	210-240	2800-3200

Model	Bottom diameter (mm)	Total weight (t)	Motor power (kw)	Motor RPM (r/min)	Lubrication station specification (l/min)	Remark
X0710	1400	91.2	145/155	730	40
X0909	1650	141	210	735	63
X0913	1650	141	210	735	63
X0917	1650	141	210	735	63
X1216	2000	228.2	310	590	125
X1221	2000	228.2	310	590	125
X1417	2200	309	430	590	125
X1422	2200	309	430	590	125
X1618	2500	481	310*2	590	125	Dual drive
X1623	2500	481	310*2	590	125	Dual drive

We are here waiting for you

Our professional team can tailor the solution to suit your needs and answer your questions

Contact Engineer

Frequently Asked Questions

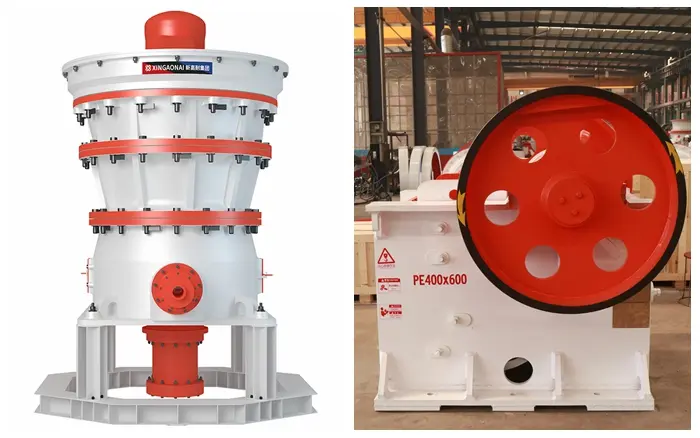

Unlike a jaw crusher which uses a reciprocating motion, a gyratory crusher uses a continuous gyrating motion of a cone-shaped mantle inside a concave bowl. This allows for continuous crushing (not intermittent), resulting in higher throughput, lower energy consumption per ton, and more consistent particle shape.

Gyratory crushers can accept feed sizes up to 1,500mm and handle capacities from 1,000 t/h to over 5,000 t/h depending on the model. They are purpose-built for ultra-large primary crushing tasks.

Key maintenance items include the main shaft and mantle wear inspection, eccentric sleeve lubrication, spider bearing checks, and monitoring the hydraulic or mechanical adjustment system. A structured preventive maintenance program significantly extends machine lifespan.

Yes. Due to its large size and high operating forces, a gyratory crusher requires a solid reinforced concrete foundation specifically designed to its load specifications. Xingaonai provides detailed foundation drawings and installation engineering support as part of the project package.
