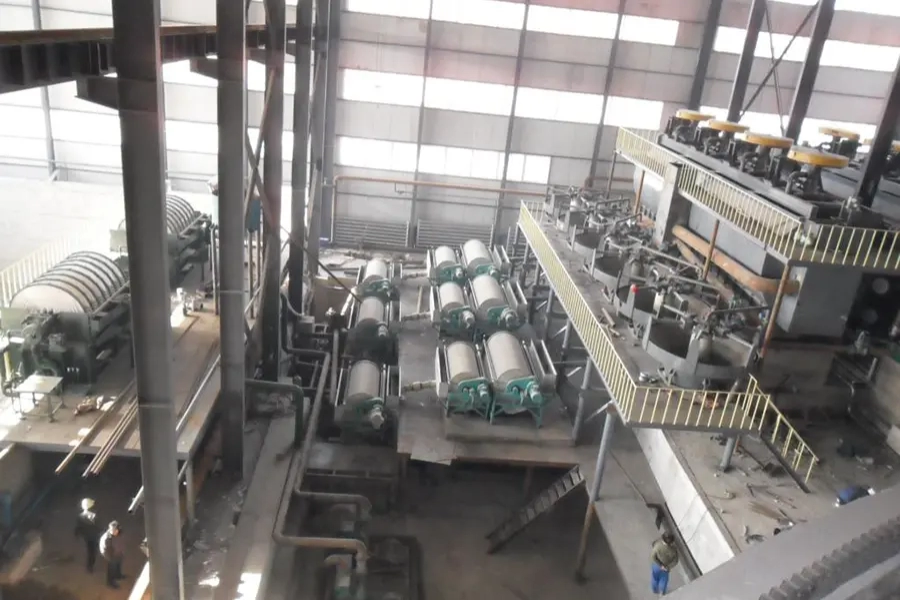

Peru 2000TPD Lead Zinc Ore Flotation Plant Project
- LOCATIONPeru
- MATERIALLead-zinc ore
- Design Capacity2000TPD
- FEED SIZE≤900mm,≤12mm
Use this project as a reference. Equipment selection and actual output depend on the material, feed conditions and required product specifications.
Project overview
Case Introduction

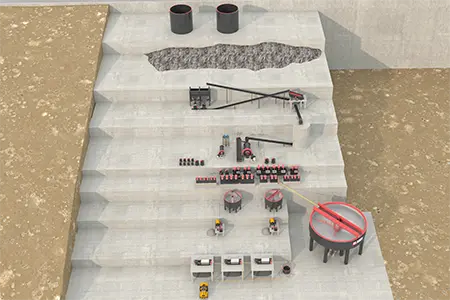

This is a 2000TPD lead zinc ore flotation plant project in Peru. A complete technological flow is customized for local low-grade lead-zinc sulfide ore: three-stage closed-circuit crushing & screening → two-stage closed-circuit grinding & classification → lead-zinc preferential flotation → concentrate thickening & filtration → tailings dewatering & dry discharge.
Designed capacity reaches 2000 tons per day. Equipped with jaw crusher, cone crusher, ball mill, hydrocyclone, flotation machine, thickener and filter press. It realizes efficient separation and enrichment of lead and zinc minerals. The preferential flotation process effectively reduces mutual inclusion of lead and zinc, improves concentrate grade and recovery rate. Full-process frequency conversion equipment saves energy, tailings moisture after filter pressing ≤20%, meeting Peru’s mine environmental protection regulations.
Designed capacity reaches 2000 tons per day. Equipped with jaw crusher, cone crusher, ball mill, hydrocyclone, flotation machine, thickener and filter press. It realizes efficient separation and enrichment of lead and zinc minerals. The preferential flotation process effectively reduces mutual inclusion of lead and zinc, improves concentrate grade and recovery rate. Full-process frequency conversion equipment saves energy, tailings moisture after filter pressing ≤20%, meeting Peru’s mine environmental protection regulations.
Equipment configuration
Main Equipment
| Process Stage | Equipment / Model | Quantity |
|---|---|---|
| Uniform feeding for primary crushing | Apron Feeder (ZN1560) | 1 |
| Primary coarse crushing | Jaw Crusher (PE1215) | 1 |
| Medium fine crushing | Cone Crusher (RC55) | 1 |
| Material conveying | Belt Conveyor (B1400 L=55m) | 1 |
| Tertiary fine crushing | Cone Crusher (RC65) | 2 |
| Return ore conveying | Belt Conveyor (B1200 L=55m) | 1 |
| Particle size classification | Vibrating Screen (2YA2463) | 2 |
| Fines conveying to ore bin | Belt Conveyor (B1200 L=30m) | 1 |
| Quantitative feeding to ball mill | Electromagnetic Vibrating Feeder (G24) | 4 |
| Mill feeding transportation | Belt Conveyor (B800 L=30m) | 1 |
| Primary grinding | Ball Mill (MQG3645) | 1 |
| Primary grinding classification | Hydrocyclone (4×FX500) | 1 |
| Secondary grinding | Ball Mill (MQY2745) | 1 |
| Pulp conditioning for lead flotation | Agitation Tank (Φ3000×3000) | 6 |
| Reagent stirring and storage | Reagent Mixing Tank (Φ2000×2000) | 2 |

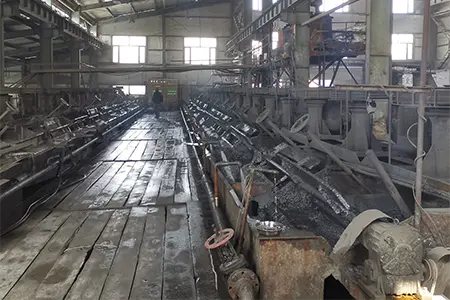

| Lead & zinc roughing, scavenging & cleaning | Flotation Machine (XCFⅡ-16/KYFⅡ-16、XCFⅡ-4/KYFⅡ-4) | 36 |
| Air supply for flotation machine | Air Blower (CF230-1.3) | 1 |

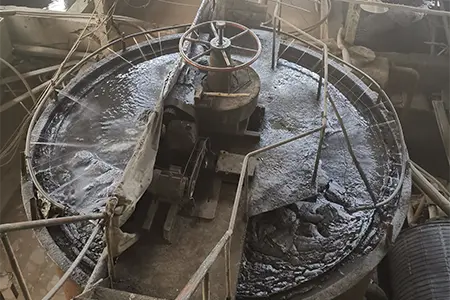

| Lead & zinc concentrate dewatering | Thickener & Disc Filter (NZS9、10㎡ disc filter) | 8 |
| Tailings thickening, filter pressing & dry discharge | Tailings Processing Equipment (Thickener, Slurry Pump, Filter Press, Water Pump) | 11 |
