Auxiliary Equipment

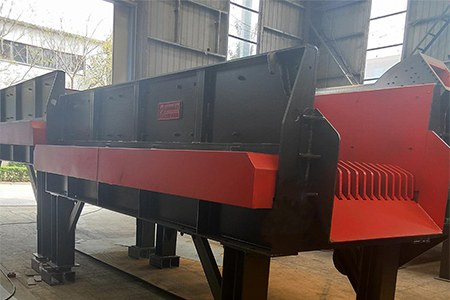

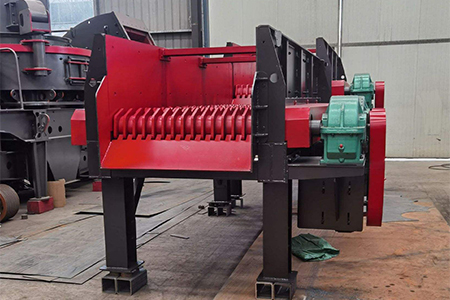

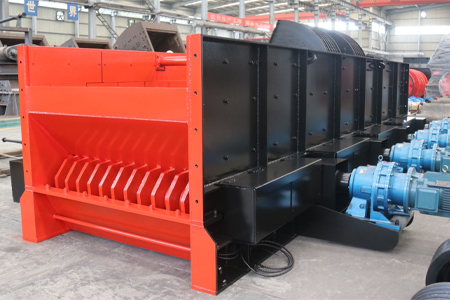

NSFL Series Mudstone Separation Equipment

CAPACITY

150-700t/h

FEED SIZE

≤500mm
Application areas:Mud and gravel separators are widely used in the separation and screening of different types of mixtures in mining, building materials, chemical industry, sand and gravel plants and other fields.
Applicable materials:Mud and gravel separator, also called multi-stage linkage roller screen, is suitable for coarse and fine separation of various materials that are difficult to separate, such as mud, soil, gravel, construction waste, etc.

PRODUCT INTRODUCTION

The debris separator is a mechanical device that can separate and screen raw materials of different models, sizes and shapes through the regular movement of the rollers. Adjusting the gap between the disc rollers can achieve reasonable and effective separation of raw materials with large differences in specifications, models and sizes. The distance of the control roller is used to control the size specification of the screened material, which is used to screen the garbage material that is lower than the size of the controlled roller.

ADVANTAGES

Equipment highly customized

For materials that are not easy to separate, the effect is good, and it can be customized according to actual material needs.

Good separation effect

No pollution, low noise, large output, no material blocking, and cleaner separation.

Multipurpose

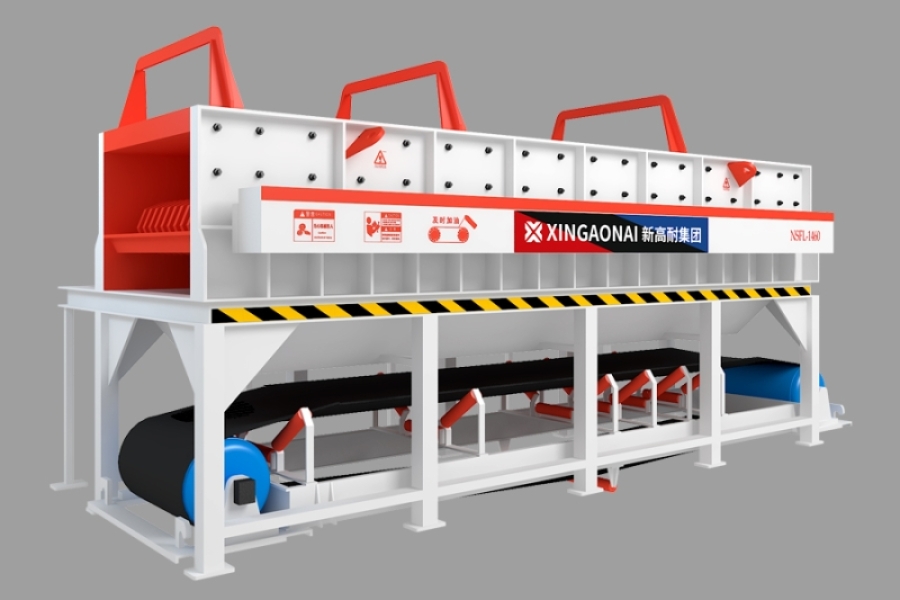

It can be used for feeding, screening and conveying. The lower part has a conveying device.

Energy efficient

Adjust the machine speed according to the actual working conditions.

WORKING PRINCIPLE

WORKING PRINCIPLE

Parameters

Model

Trough width

(mm)

Trough length

(mm)

Feed size

(mm)

Motor power

(kw)

Capacity

(tph)

NSFL-104010004000≤3504*7.5150-200
NSFL-106010006000≤3505*7.5150-200
NSFL-124012004000≤4004*11200-300
NSFL-126012006000≤4005*11200-300
NSFL-144014004000≤5004*15300-450
NSFL-146014006000≤5004*15300-450
NSFL-164016004000≤5004*15500-700
NSFL-166016006000≤5004*18.5500-700
