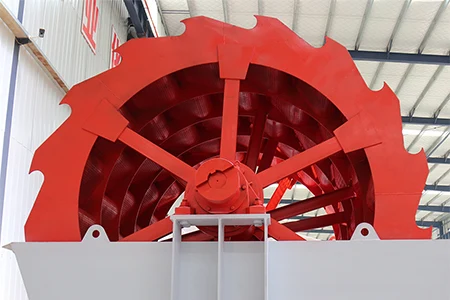

Wheel Bucket Sand Washing Machine

CAPACITY

20-180t/h

FEED SIZE

≤20mm

Application areas：Wheel bucket sand washing machines are often used in conjunction with sand making machines and are widely used in wet sand making processes in mining, building materials, water conservancy and hydropower, concrete mixing stations and other fields.

Applicable materials：Wheel bucket sand washing machine is suitable for washing, grading and impurity removal operations of various materials such as limestone and granite.

GET A QUOTE CHAT NOW PDF Download

Introduction
Advantages
Working principle
Parameters

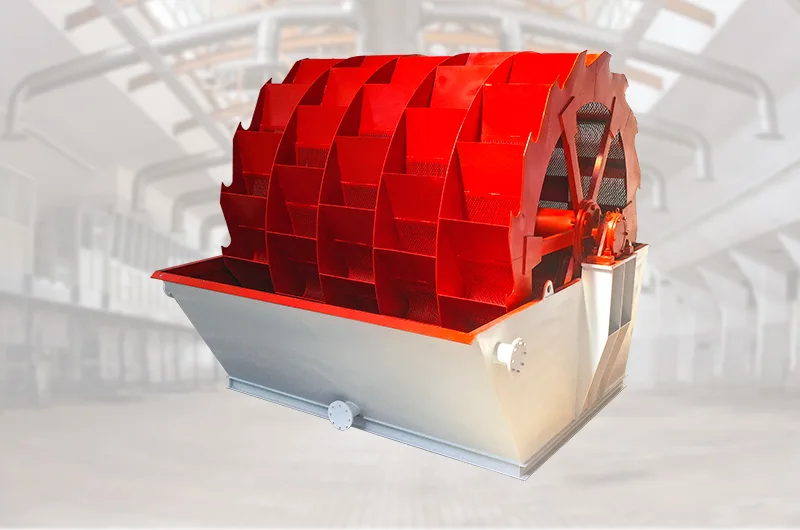

Product Overview

The wheel bucket sand washing machine has the characteristics of high cleanliness of finished products, large processing capacity, low power consumption and long service life. It plays an indispensable role in the artificial sand wet processing process and is widely used in sand and gravel yards. , mining, building materials, water conservancy and hydropower, and concrete mixing stations can effectively improve the cleanliness and quality of finished sand, and are the preferred equipment for upgrading the sand washing industry today.

Key Advantages

Durable and stable

The impeller drive bearing device is isolated from water and water-receiving materials, which effectively reduces the failure rate and saves costs; it operates normally in harsh environments.

High degree of cleaning

The fineness modulus meets the standard requirements, meets the requirements of high-grade materials, and is widely used.

Less material loss

During the sand washing process, the loss of fine sand and stone powder is small, and it has a new sealing structure and an adjustable overflow weir plate.

Less wearing parts

No wearing parts, less maintenance, long service life; water washing process avoids dust pollution, mud and water are separated, and water resources are reused.

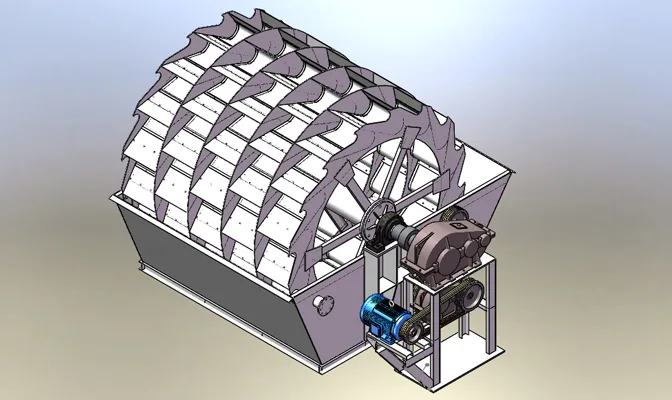

Working Principle

The wheel bucket sand washing machine operates by rotating a wheel with multiple buckets to wash and clean sand. The sand is fed into the washing tank, where water removes impurities such as dust and clay. As the wheel rotates, clean sand is lifted and discharged, while wastewater flows out. This process improves sand quality and is widely used in sand and gravel production lines.

Technical Parameters

Model	Impeller (outside diameter*width) (mm)	Impeller speed (r/min)	Max Feed Size (mm)	Capacity (tph)	Motor power (kw)	Dimensions (mm)
XGN-XS2610	2600*1000	1.178	≤10	20-50	5.5	325519822690
XGN-XS2816	2800*1600	1.177	≤10	30-60	11	354030002880
XGN-XS3016	3000*1600	1.179	≤10	50-120	15	384530003080
XGN-XS3220	3200*2000	1.18	≤10	70-160	15	410035603300
XGN-XS3230	3200*3000	1.18	≤10	180-220	18.5	410035603300
XGN-XS3620	3600*2000	1.18	≤10	100-180	18.5	460035603700

We are here waiting for you

Our professional team can tailor the solution to suit your needs and answer your questions

Contact Engineer

Frequently Asked Questions

The wheel bucket washer produces cleaner, better-dewatered sand with lower moisture content at discharge (typically 15–18%). It handles coarser particle sizes (up to 10mm) more effectively and is preferred when output moisture content matters, such as for bagged or transported sand products.

Yes. The wheel bucket design handles a wider particle size range (0–10mm) than spiral washers, making it suitable for washing both manufactured sand and fine gravel simultaneously in combined aggregate production lines.

Key maintenance includes regular inspection of the bucket liners and wheel bearings, checking the reducer gearbox oil level, clearing debris from the water tank, and tightening any loose bucket bolts. A weekly inspection routine is recommended for continuous operation lines.

Yes. It can effectively recover fine sand particles and improve the quality of finished aggregates.
