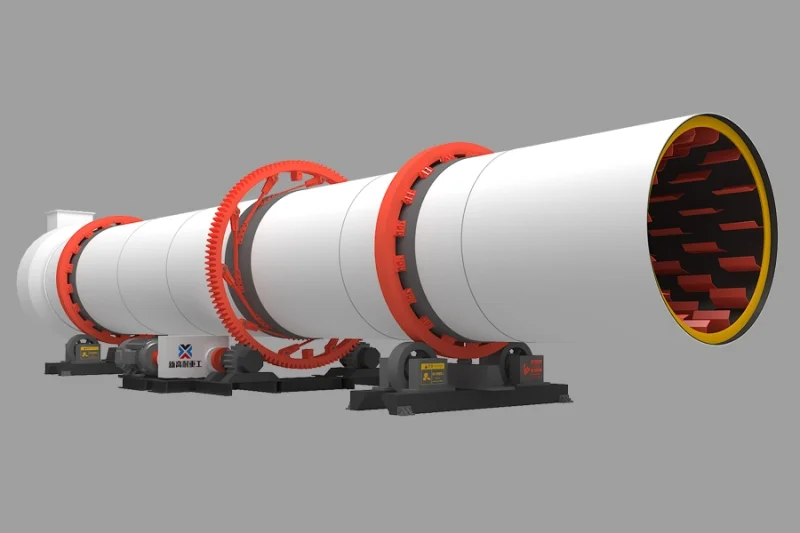

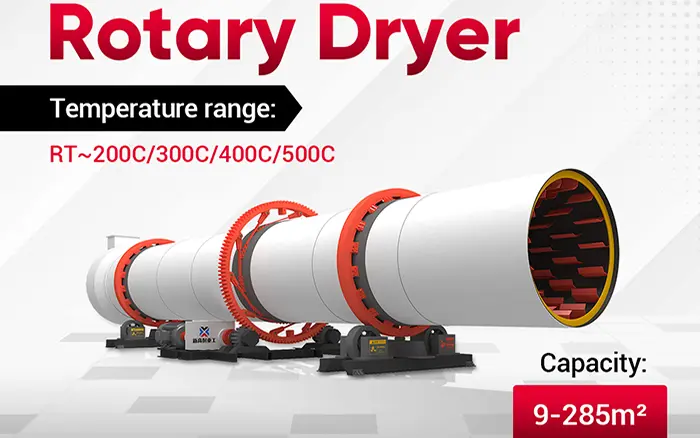

Rotary Dryer

High Thermal Efficiency, Stable Moisture Control

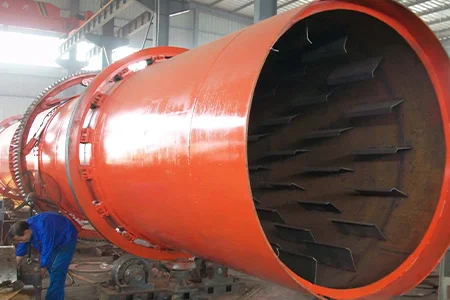

The internally engineered lifting flight system — combining radial flights, cross-lifting flights, and guide flights in a staged layout — ensures thorough material turnover and maximum surface area exposure to the drying gas at every point along the drum length. This delivers uniform, consistent outlet moisture with minimal fuel consumption per tonne of water evaporated, even when inlet moisture fluctuates.

Robust All-Weather Heavy-Duty Structure

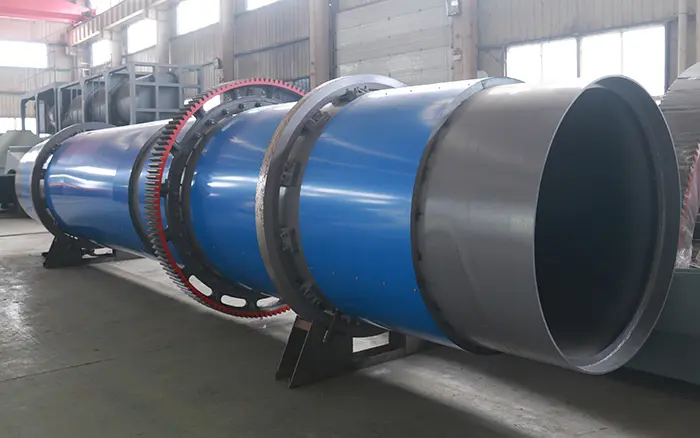

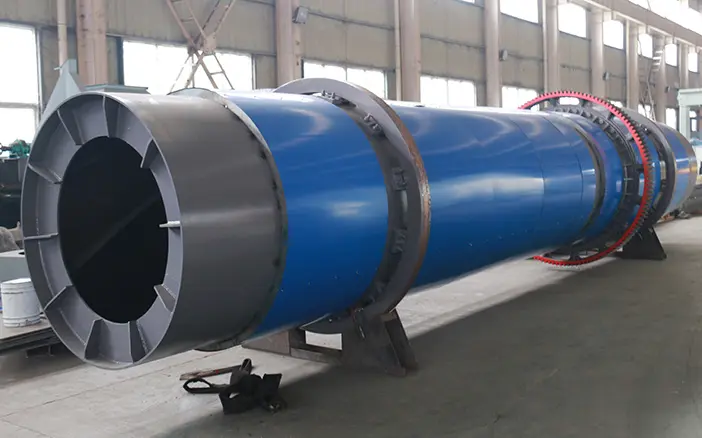

The drum shell is fabricated from heavy-gauge boiler-quality steel plate with full-penetration circumferential welds, stress-relieved after fabrication. The riding rings are forged steel, precision-machined and shrink-fitted onto the shell with a designed float to accommodate thermal expansion. The result is a mechanically reliable drum capable of operating continuously for 3–5 years between major overhauls in demanding outdoor environments.

Flexible Heat Source Compatibility

XINGAONAI Rotary Dryers are designed with an open combustion chamber interface that accepts hot gas from coal-fired, natural gas, diesel, biomass, or waste heat recovery systems. This fuel-agnostic design allows customers to select the most cost-effective energy source available locally, or switch fuel sources as energy prices change, without modifying the dryer itself.

Adjustable Retention Time & Drying Intensity

Drum rotation speed (adjustable via variable-frequency drive) and drum inclination angle (set during installation) together control material retention time inside the dryer. Increasing rotation speed or inclination reduces retention time for lighter drying duties; reducing speed extends retention for high-moisture or thermally sensitive materials. This flexibility allows one machine to handle a range of materials and seasonal moisture variations.

Dust Collection & Environmental Compliance

The dryer system is supplied as standard with a cyclone dust collector on the exhaust gas outlet, with optional bag-filter or wet scrubber units available for sites subject to strict particulate emission limits. The sealed drum and negative-pressure gas circuit minimize fugitive dust emissions at the feed and discharge ends, supporting environmental compliance without additional enclosure structures.

Low Maintenance, Long Service Life

Riding ring and carrier roller contact surfaces are precision-ground and continuously lubricated by a drip-oil system, ensuring low friction and minimal wear over extended service periods. The open gear drive uses a spray lubrication system for reliable coverage. Lifting flight plates are made from wear-resistant steel and bolted in replaceable sections, allowing individual worn flights to be swapped out during scheduled maintenance without drum replacement.
