Stone Crusher

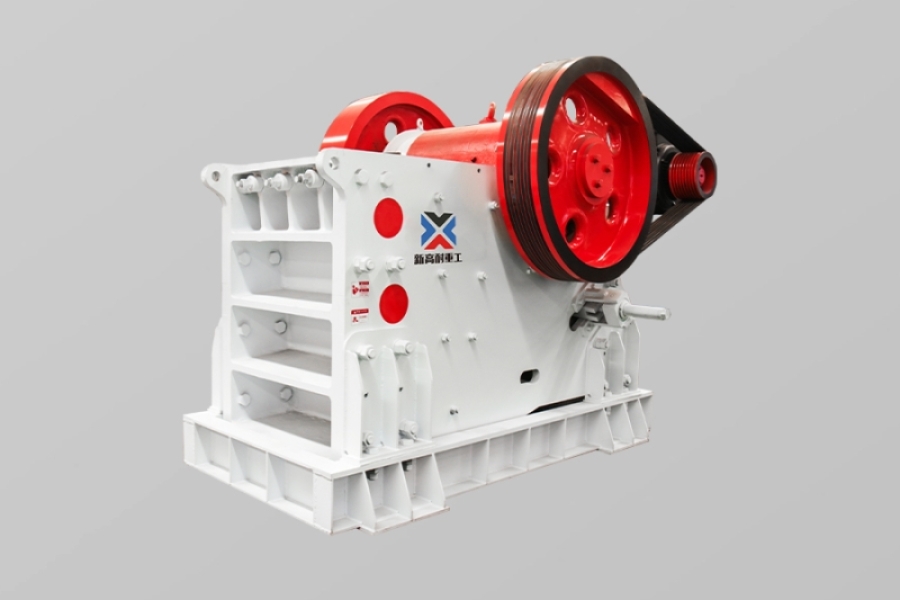

PEV Series Jaw Crusher

CAPACITY

55–1,590 t/h

FEED SIZE

Confirm by model
Application areas:PEV series jaw crushers are widely used in the primary crushing of materials in mining, quarries, construction, metallurgy and other industries.
Applicable materials:PEV series jaw crusher is suitable for coarse crushing of various hard ores such as granite, river pebbles, basalt, iron ore, etc.

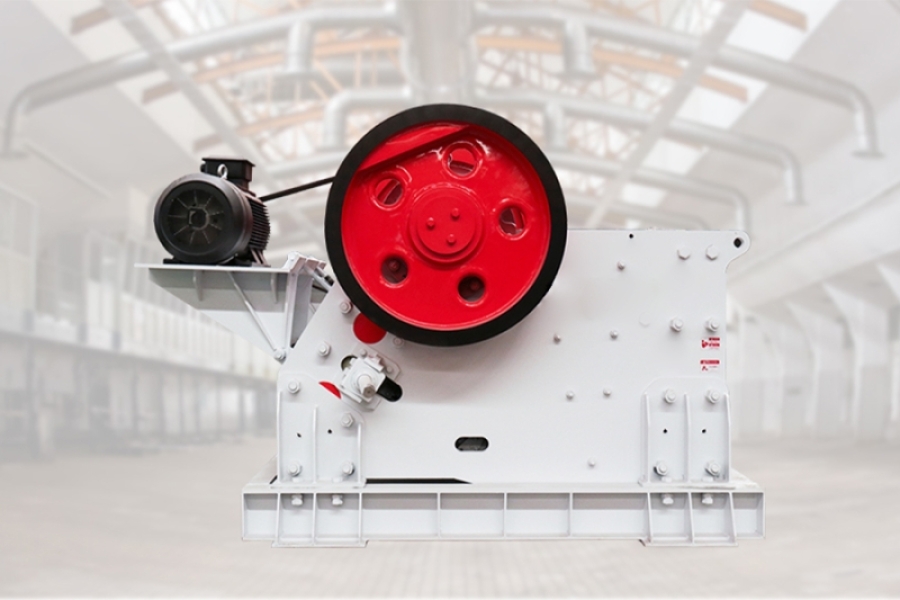

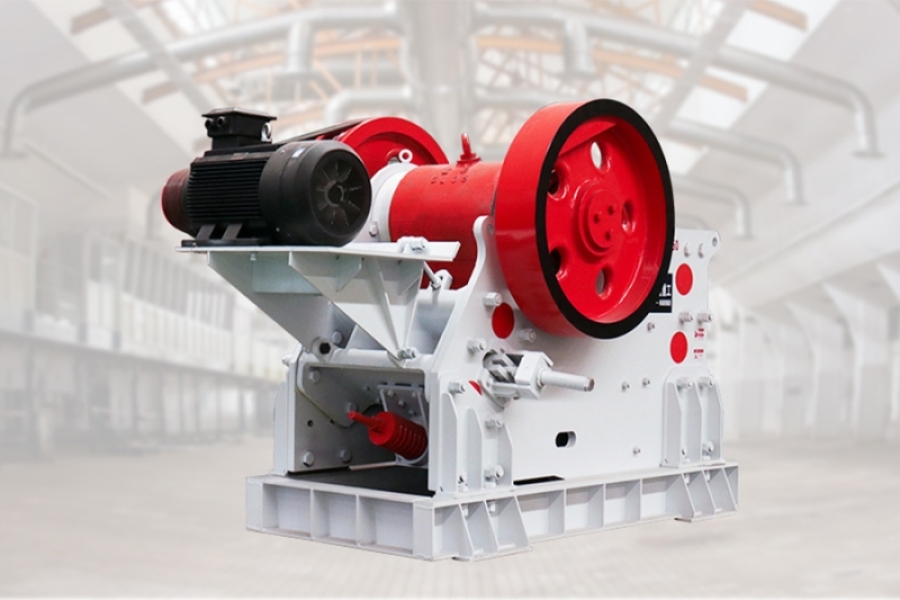

Product Overview

The PEV Series Jaw Crusher is a heavy-duty primary crushing machine designed for mines, quarries, and large aggregate production plants. The series covers nominal capacities from 55 to 1,590 tph and accepts large rock feed, depending on the selected model and operating conditions.

The PEV Series uses a non-welded, detachable frame, a V-shaped crushing chamber and heavy-duty bearings. Its cast-steel bearing housings, integrated motor base and wedge-type discharge adjustment are described in the product brochure. These features support installation, adjustment and access for maintenance.

The crusher can process granite, basalt, river pebble, iron ore, copper ore, limestone, quartzite, and other hard or abrasive materials. It is normally installed as the primary crusher before cone crushers, impact crushers, screening equipment, and other downstream processes.

Published feed opening dimensions range from 500 × 750 mm to 1,500 × 2,000 mm. These are inlet dimensions, not maximum feed particle sizes. The permitted feed size and discharge setting must be confirmed for the selected model and material.

Model selection should be based on the maximum feed size, required throughput, discharge setting, material hardness and abrasiveness, moisture and clay content, installation conditions, and downstream equipment capacity. Published capacities are reference ranges and may vary with feed gradation and operating conditions.

Key Advantages

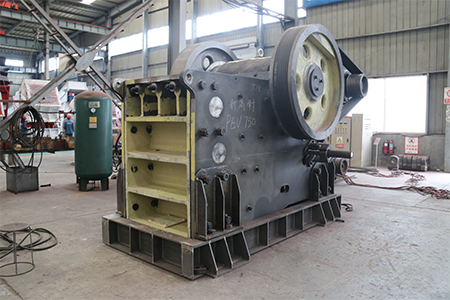

Modular Non-Welded Frame

The side, front, and rear frame sections use a detachable bolted structure, helping simplify transportation, installation, inspection, and replacement of major components.

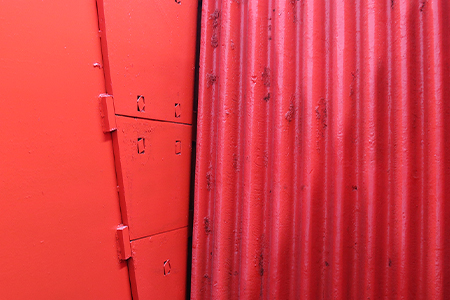

Optimized Crushing Chamber

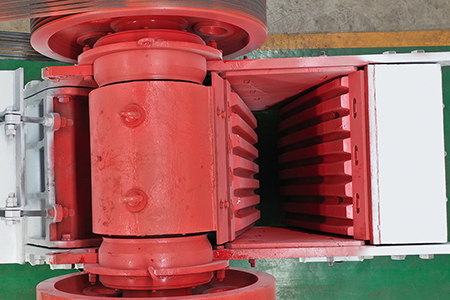

The V-shaped chamber and optimized jaw motion help improve material engagement, reduction performance, and throughput in primary crushing applications.

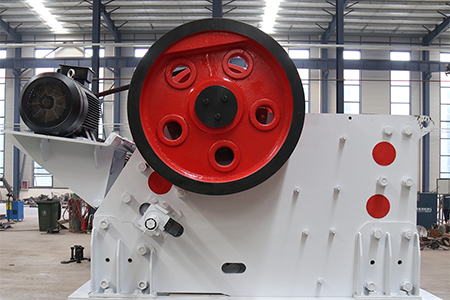

Designed for Large Hard-Rock Feed

Large feed openings, heavy-duty bearings, and a rigid frame make the crusher suitable for granite, basalt, iron ore, and other hard or abrasive materials.

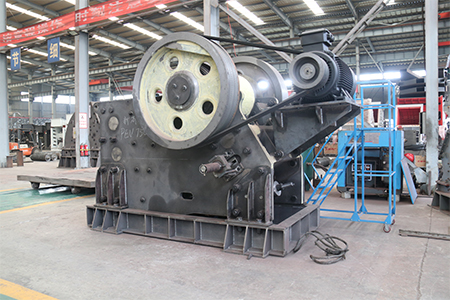

Easier Maintenance and Component Replacement

Accessible wear parts and the detachable frame design help reduce maintenance difficulty and shorten planned service work.

Working Principle

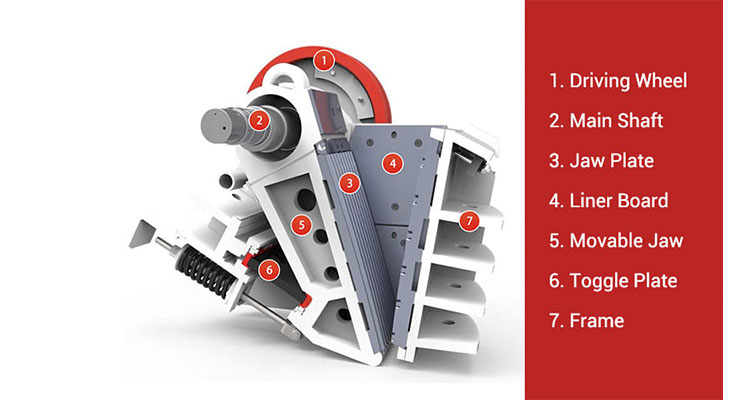

Working Principle of PEV Series Jaw Crusher

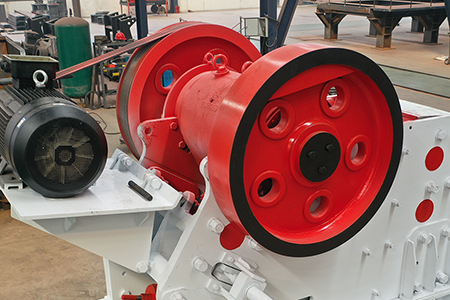

The motor drives the eccentric shaft through the belt and pulley, producing the cyclic movement of the movable jaw. Rock is compressed between the movable and fixed jaw plates as the crushing chamber closes. As the chamber opens, material moves downward under gravity and is discharged when it can pass through the outlet. The wedge-type adjustment mechanism changes the discharge setting. Feed opening dimensions, permitted feed particle size and discharge setting are different specifications; confirm the latter two for the selected model and follow its operating manual.

Technical Parameters

ModelFeed Opening Dimensions (mm)Feed Opening Width (mm)Feed Opening Depth (mm)Capacity (t/h)Motor Power (kW)Machine Weight, Excluding Motor (kg)
PEV500×750500×75075050055–340558900
PEV600×900600×900900600120–4559012000
PEV750×1060750×10601060750155–58013222600
PEV950×1250950×12501250950290–84516039600
PEV1200×14001200×140014001200405–102520055000
PEV1200×16001200×160016001200520–127525073600
PEV1500×20001500×200020001500760–1590400144600

Reading the specifications: Feed opening width and depth describe the inlet geometry. They are not the maximum allowable feed size or the discharge setting. Confirm the permitted feed size and discharge adjustment range for the selected model before ordering.

Capacity figures are reference ranges and depend on material properties, feed gradation, moisture, discharge setting and operating conditions. Machine weights exclude the motor.

Need Help Choosing the Right Equipment?
Tell us your material type, maximum feed size, required capacity and final product specifications. Our engineers will recommend the right equipment model and process solution for your project.
Talk to an Engineer

Frequently Asked Questions

A PEV Series jaw crusher is mainly used for the primary crushing of large rocks and ores. It reduces run-of-mine or quarry material to a size suitable for cone crushers, impact crushers, screens, and other downstream equipment. Typical applications include mining, quarrying, aggregate production, construction materials, and mineral processing.

A PEV jaw crusher can process granite, basalt, river pebble, iron ore, copper ore, limestone, quartzite, and other hard or abrasive materials. Actual capacity and wear-part life depend on the material’s compressive strength, abrasiveness, feed gradation, moisture and clay content, as well as the selected discharge setting.

The PEV Series covers nominal capacities from approximately 55 to 1,590 tph, depending on the selected model. Actual output may vary with the maximum feed size, feed gradation, material properties, moisture content, discharge setting, feeding conditions, and downstream equipment. The final model should therefore be confirmed according to the project’s operating conditions.

Both PE and PEV jaw crushers are designed for primary crushing. The PE Series uses a proven conventional design suitable for a wide range of standard crushing applications. The PEV Series features an updated crushing chamber and a modular, detachable frame designed to simplify transportation, installation, maintenance, and major-component replacement. The best choice depends on the required capacity, feed size, installation conditions, maintenance requirements, and project budget.

To select the correct model, provide the maximum feed size, required hourly capacity, target discharge size, material type, compressive strength, abrasiveness, moisture and clay content, and project location. Installation space, altitude, power supply, feeding equipment, and downstream crusher capacity should also be considered. A model should not be selected from capacity alone because actual output depends on the complete operating conditions. Feed opening dimensions are not the maximum permitted feed particle size. Confirm the allowable feed size and discharge adjustment range for the selected model.

Under normal operating procedures, a PEV jaw crusher should be started with an empty crushing chamber. Allow the crusher to reach a stable operating speed before starting the feeder. During shutdown, stop feeding first and allow the remaining material to leave the chamber before stopping the crusher. If the chamber is blocked, isolate the power and follow the site’s lockout/tagout and clearing procedures. Always follow the operating manual supplied with the specific model.
