Beneficiation Equipment

Rotary Dryer

CAPACITY

9-285m³

FEED SIZE

---
Application areas:Mineral processing, building materials, metallurgy, cement, chemical industry, etc.
Applicable materials:Yellow sand, quartz sand, iron filings, iron mud, copper filings, aluminum filings, coal, etc.

PRODUCT INTRODUCTION

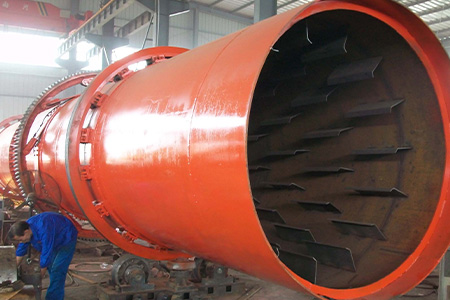

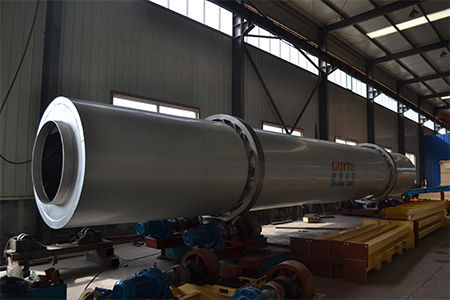

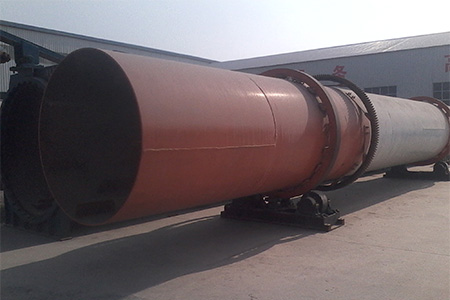

The Rotary Dryer belongs to the drying and heat treatment equipment, suitable for drying magnetic, heavy, and floating concentrates of metal and non-metal ores, clay in the cement industry, and coal slurry in the coal mining industry with certain humidity or particle size. It has the advantages of simple structure, convenient operation, and strong adaptability, and is a widely used drying machinery.

ADVANTAGES

Wide applicability

Strong adaptability to materials, suitable for energy-saving drying of various powder, granular, strip, and block materials. It can not only quickly remove moisture from materials, but also has simple and reliable equipment operation

Strong drying ability

Adopting a new type of multi combination lifting device, it has multiple functions such as guidance, uniform flow, and lifting, which can effectively overcome the "wind tunnel" phenomenon of traditional dryers, allowing materials to fully contact the hot air flow, and the drying heat transfer process is strong and efficient

Excellent material selection

The cylinder body is made of steel material, which has high hardness, toughness, and is more wear-resistant; The transmission of large and small gears adopts pin column replaceable gears, with low investment cost. There are multiple lubrication methods for the supporting wheels, effectively extending the service life

Less dust leakage

Good sealing performance, complete dust removal device, effectively reducing dust leakage; Reasonable operating parameters, effective utilization of thermal energy, reduction of coal and electricity consumption, and improvement of production capacity

WORKING PRINCIPLE

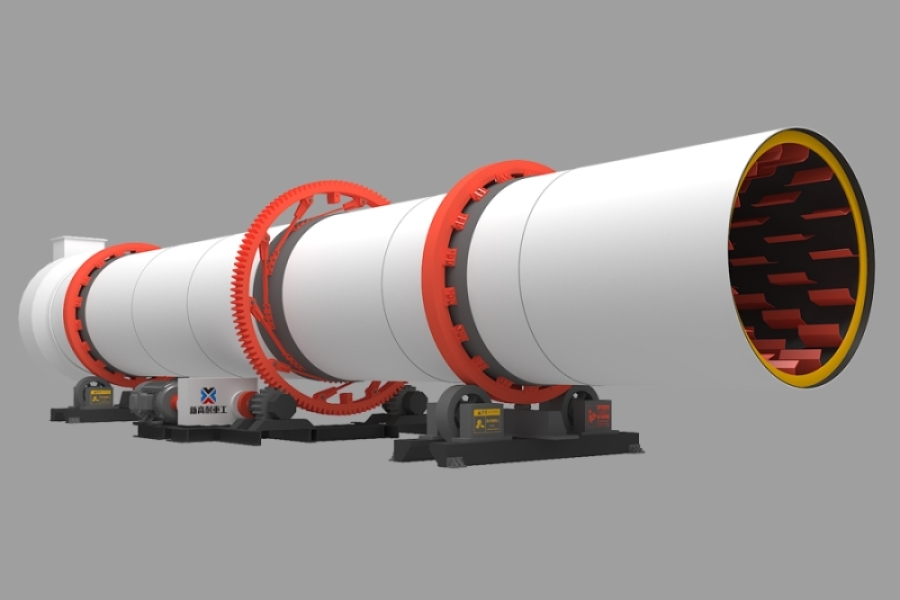

Rotary Dryer WORKING PRINCIPLE
Using a self combustion device to generate heat, the wet material is fed into one end of the dryer and undergoes sufficient heat exchange with the hot air flow from the combustion chamber under the flipping of the inclined spiral plate. It then moves to the discharge valve at the other end of the dryer to discharge the finished product, thus completing the drying operation.

Parameters

Specification (diameter*length)

Cylinder volume

(m³)

Production capacity

(t/h)

Installation

slope

(%)

Maximum intake temperature (℃)

Main

motor

(kw)

Total weight

(t)

Φ1.2*891.9-2.4
3-5700-8007.59
Φ1.2*1011.32.4-3.03-5700-8007.511
Φ1.5*1221.24.5-5.73-5700-8001518.5
Φ1.5*1424.75.3-6.63-5700-8001519.7
Φ1.5*1526.55.7-7.13-5700-8001520.5
Φ1.8*1230.56.5-8.13-5700-80018.521.5
Φ1.8*1435.67.6-9.53-5700-80018.523
Φ2.2*1245.69.7-12.23-5700-8002233.5
Φ2.2*1453.211.4-14.23-5700-8002236
Φ2.2*1660.813.0-16.23-5700-8002238
Φ2.4*1463.113.5-16.93-5700-8003745
Φ2.4*1881.417.4-21.73-5700-8003749
Φ2.4*2090.419.3-24.13-5700-8004554
Φ2.4*2299.521.2-26.53-5700-8004558
Φ2.6*24127.427.2-34.03-5700-8005573
Φ3.0*20141.330.1-37.73-5700-8007585
Φ3.0*25176.637.7-47.13-5700-8007595
Φ3.2*2520142.9-53.63-5700-80090110
Φ3.6*2828560.8-76.03-5700-800160
135
