XINGAONAI Group · Project Case

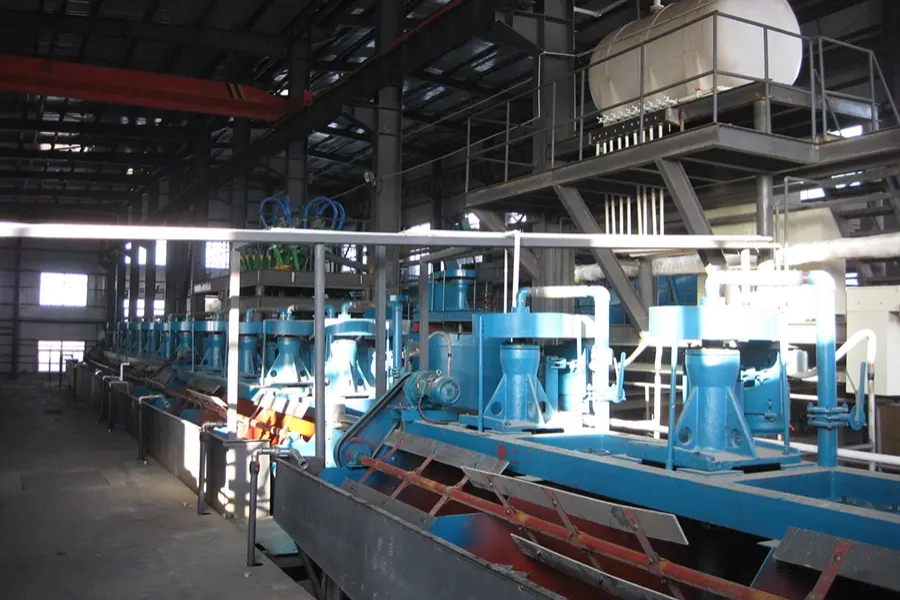

100TPD Fluorite Tailings Re-flotation Recovery Processing Line
- LOCATIONMongolia
- MATERIALFluorite
- Design Capacity100TPD
- FEED SIZE≤2mm
Use this project as a reference. Equipment selection and actual output depend on the material, feed conditions and required product specifications.
Project overview
Case Introduction
This project is a 100TPD fluorite tailings re-flotation recovery line, designed to extract low-grade fluorite remaining in beneficiation plant tailings. It adopts a full process flow: washing & screening → thickening & classification → grinding & classification → pulp conditioning → multi-stage flotation → concentrate briquetting → drying, to realize efficient resource recovery.
The line is equipped with core equipment including a φ1200×3200 ball mill, SF-series flotation machines, a 12TPH briquetting machine and rotary dryer. It produces high-grade fluorite concentrate briquettes with moisture ≤1%, meeting industrial fluorite quality requirements. This solution solves tailings stockpiling and pollution issues while boosting resource utilization and economic benefits for mining enterprises.
The line is equipped with core equipment including a φ1200×3200 ball mill, SF-series flotation machines, a 12TPH briquetting machine and rotary dryer. It produces high-grade fluorite concentrate briquettes with moisture ≤1%, meeting industrial fluorite quality requirements. This solution solves tailings stockpiling and pollution issues while boosting resource utilization and economic benefits for mining enterprises.
Equipment configuration
Main Equipment
| Process Stage | Equipment / Model | Quantity |
|---|---|---|
| Tailings pre-screening & desliming | Washing Trommel Screen (φ1000×2000 ) | 1 |
| Tailings thickening & dewatering | Thickener (ø6m) | 1 |
| Pulp conditioning before flotation | Thickener (ø3m) | 1 |

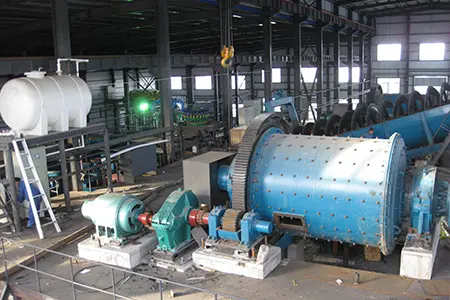

| Tailings grinding to flotation fineness | Ball Mill | 1 |

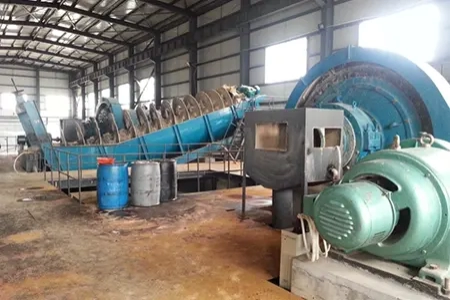

| Grinding classification & sand return | Spiral Classifier | 1 |
| Pulp mixing & reagent conditioning | Agitation Tank | 4 |

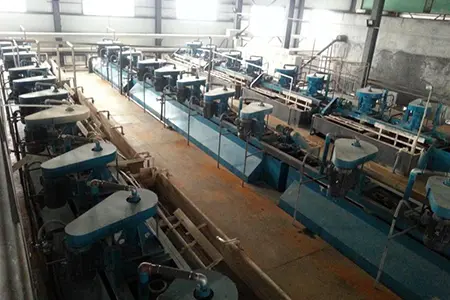

| Roughing/scavenging to enrich fluorite | Flotation Machine (SF2.8) | 12 |
| Cleaning to improve concentrate grade | Flotation Machine (SF1.2) | 10 |
| Energy-saving pulp transportation | Slurry Pump | 3 |
| Material transfer between processes | Belt Conveyor | 3 |
| Press concentrate into high-density briquettes | Briquetting Machine | 1 |
| Dry briquettes to reduce moisture to ≤1% | Rotary Dryer | 1 |
