Sand Crusher

VSI Vertical Shaft Impact Crusher

CAPACITY

70-640t/h

FEED SIZE

≤60mm

Application areas：VSI vertical shaft impact crushers are widely used in the crushing and sand making of materials in mining, construction, abrasives, metallurgy and other fields.

Applicable materials：VSI vertical shaft impact crushers are suitable for fine crushing and sand making operations of various hard stone materials such as granite, diabase, basalt, iron ore, etc.

GET A QUOTE CHAT NOW PDF Download

Introduction
Advantages
Working principle
Parameters

Product Overview

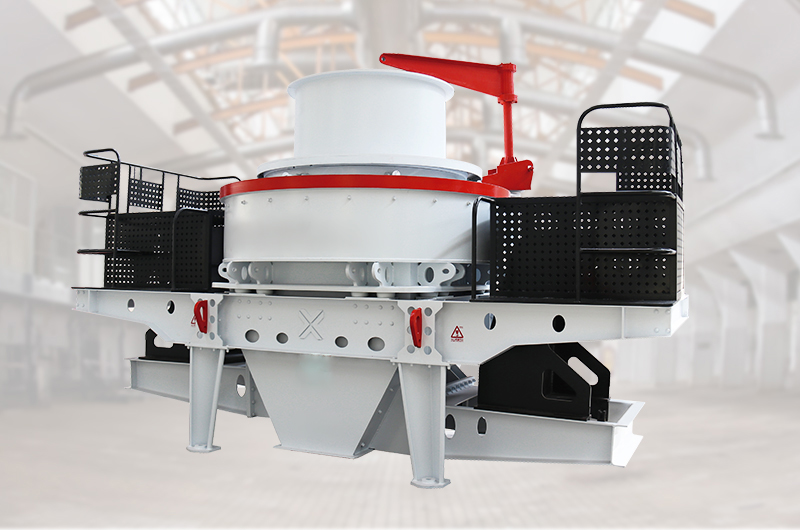

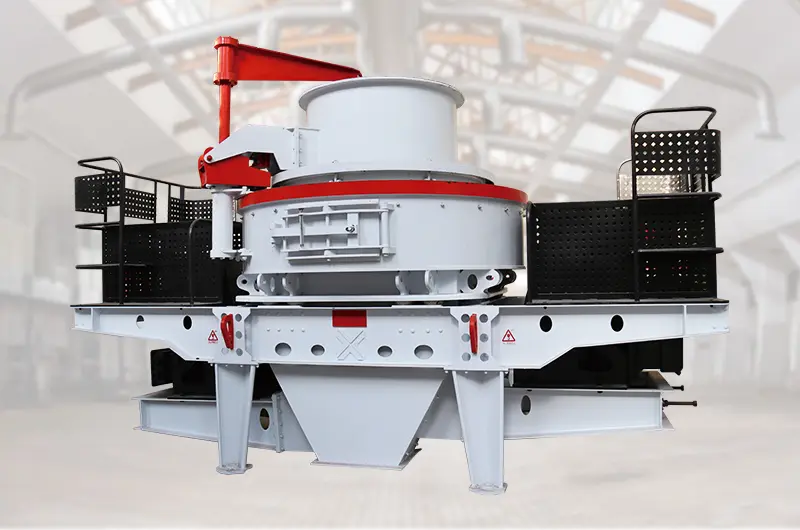

The VSI Vertical Shaft Impact Crusher is a high-performance crushing equipment for artificial sand making and material shaping. With 35-600t/h capacity, it efficiently crushes granite, river pebbles, and ore via impact principle, delivering uniform particle size and excellent shape. Featuring intelligent control, low energy consumption, and easy maintenance, it’s widely used in mining, construction, and aggregate production, ideal for high-quality sand and gravel projects.

Key Advantages

New process design

Adopting a new four-port design, compared with the three-port impeller, the crushing efficiency of the same material is increased by 20%, and the wear on wear-resistant parts is reduced.

Energy saving

Deep cavity rotor design, greater throughput, self-circulation of airflow inside the vortex cavity, less dust and low noise.

One machine with multiple functions

The sand making and shaping of the special rotor can be freely converted, and the peripheral guard plate can be removed for hard rock stone shaping, and the flake rate is greatly reduced; the peripheral guard plate can be used for hard rock sand making.

High output

Reasonable material impact angle design in the crushing chamber reduces energy consumption and use costs, and increases output per hour.

Working Principle

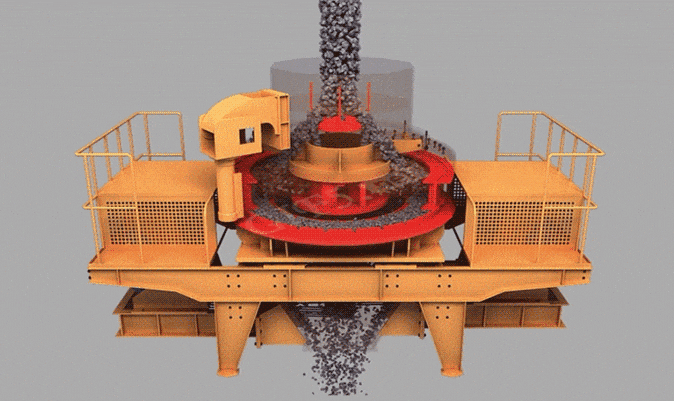

Large pieces of ore fall from the feeding hopper into the upper throwing tray in the upper crushing cavity, and the material is thrown to the inner wall of the cylinder by the centrifugal force of the throwing tray, and collides violently with the counter board installed on the inner wall. At the same time, the materials collide with each other, causing them to break or generate a large number of capillary cracks. Then after entering the conical rotor cavity, the material spirally falls in the conical space, and the crushed ore is further crushed by punching and extrusion. Due to the inclination between the conical rotor and the liner, the smaller materials will move downward, and the graded crushing from big to small can be realized automatically. When the material is hit by the hammer head in the conical rotor cavity, the high-speed running block material collides with the impact plate again, and the material flow collides with each other, so that the material is crushed by impact, collision, shearing and extrusion, and the crushing rate is improved. efficiency.

Technical Parameters

Model	Capacity no center feeding (tph)	Capacity center feeding (tph)	The best feed size soft （mm）	The best feed size hard (mm)	Rotating speed (r/min)	Dual motor power (kw)	Dimensions (mm)	Weight (t)
VSI7615	150-280	70-140	35	30	1700-1900	150	410023202300	12.1
VSI8522	240-380	120-200	40	35	1530-1700	220	414026002700	14.8
VSI9532	350-540	180-280	45	40	1380-1660	320	480025712893	18.6
VSI1145	500-640	250-360	50	45	1200-1390	440	545028503335	21.5
VSI1150	413-442	344-368	55	45	1000-1300	500	550027503950	23
VSI1263	545-583	454-486	60	50	900-1200	630	575029803410	24.5

We are here waiting for you

Our professional team can tailor the solution to suit your needs and answer your questions

Contact Engineer

Frequently Asked Questions

A VSI crusher uses a high-speed rotating rotor to accelerate materials, which then collide with impact blocks or other materials. It supports two crushing principles: "rock-on-rock" (material self-impact for shaping) and "rock-on-iron" (material impacting metal anvils for higher reduction).

It has a high crushing ratio (up to 50:1), produces excellent cubical particles with needle flake content below 10%, handles both soft and hard materials, and features selective crushing—higher density materials break into smaller sizes.

Wear parts like hammers and impact plates wear quickly. Also, when material moisture exceeds 9% or contains sticky components, it may cause build-up on impact surfaces and reduce efficiency.

VSI crushers are known for producing highly cubical, well-graded particles with a low needle/flake content — typically below 10–15%. This makes the output ideal for high-specification concrete aggregates, asphalt mixes, and railway ballast.

Related Products

Single Rotor Sand Making Machine

FEED SIZE：≤700mm

CAPACITY：20-150t/h

Double Rotor Sand Making Machine

FEED SIZE：≤280mm

CAPACITY：150-300t/h

Roller Sand Making Machine

FEED SIZE：≤40mm

CAPACITY：50-300t/h

Explore Our Projects

Related Blog

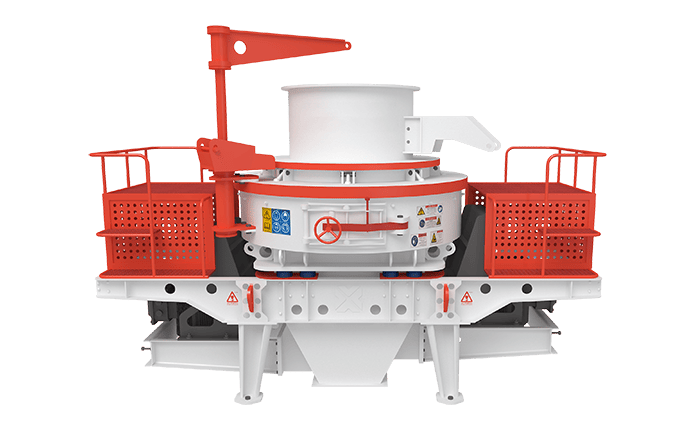

Vertical Shaft Impact Crusher Spares: Essential Parts, Selection & Replacement
