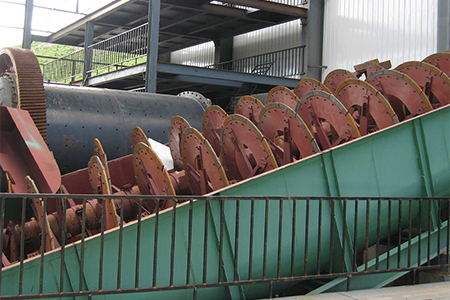

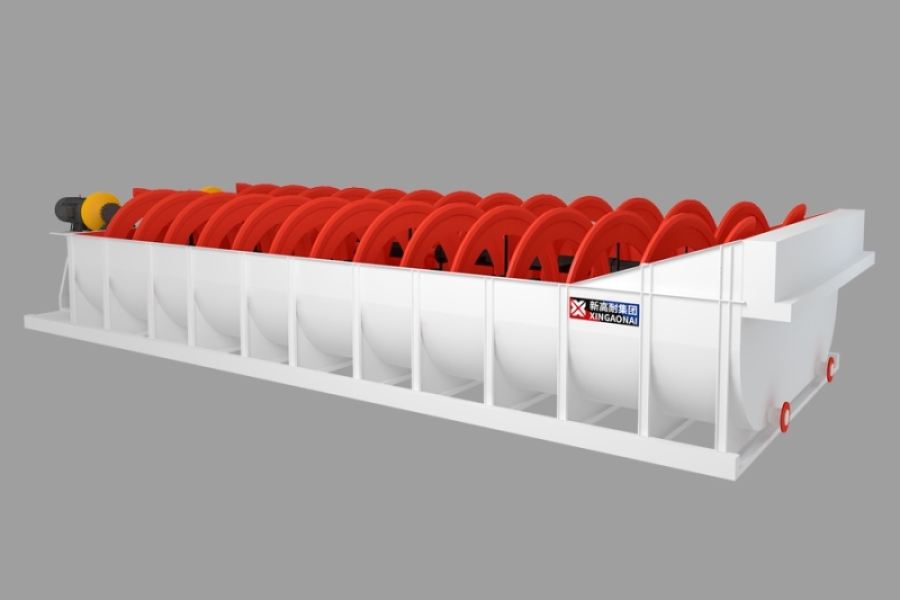

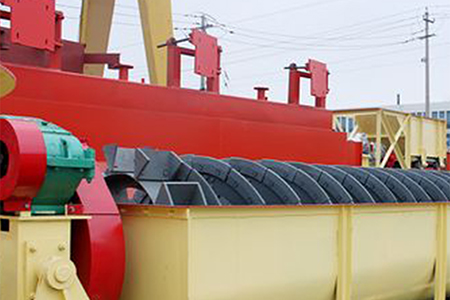

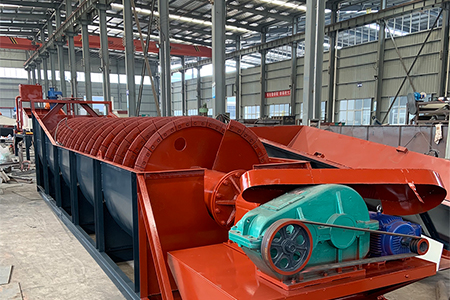

The high weir classifier is a kind of mineral processing equipment that uses the different settling speeds of solid particles in the pulp to classify. It is widely used in metal ore crushing and ball mills to form a closed-circuit circulation diversion of ore, or used in the metal mineral processing process. Carry out operations such as particle size classification and desliming and dehydration in ore washing operations.
Granularity controllable
The area of the settlement area is large, the height of the weir can be adjusted, the particle size can be adjusted, and the classification fineness is high.
Easy to operate
High degree of automation, using frequency conversion control technology.
Low failure rate
Automatic lifting device, no dust pollution.
Durable wear parts
The base is made of high-strength steel, the body is welded with steel plates, and special graded parts can be equipped according to requirements.
| Model | Spiral speed (r/min) | Return sand volume (t/d) | Overflow handling capacity (t/d) | Spiral diameter (mm) | Spiral length (mm) | Slope of sink | Drive motor model | Power (kw) | Lifting motor model | Power (kw) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FLG-300 | 7.7 | 30-80 | 10-30 | Φ300 | 3900 | 14-18 | Y100L1-4 | 2.2 | manual | - | 668 |
| FLG-500 | 8 | 145-260 | 21-75 | Φ500 | 4390 | Y112M-6 | 2.2 | manual | - | 1600 | |
| FLG-750 | 7.8 | 100-455 | 31-165 | Φ750 | 5500 | Y132S-6 | 3 | manual | - | 2716 | |
| FLG-1000 | 6.7 | 473-1026 | 85 | Φ1000 | 6556 | Y132M2-6 | 5.5 | manual | - | 4000 | |
| FLG-1200 | 5,6,7 | 1145-1600 | 150 | Φ1200 | 6500 | Y132M2-6 | 5.5 | Y90L-4 | 1.5 | 7943 | |
| FLG-1500 | 2.5,4,6 | 1140-2730 | 235 | Φ1500 | 8265 | Y160M-6 | 7.5 | Y100L1-4 | 2.2 | 11827 | |
| FLG-2000 | 3.6,5.5 | 3240-5940 | 400 | Φ2000 | 8700 | Y160L-6/4 | 11,15 | Y100L2-4 | 3 | 20814 | |
| FLG-2400 | 3.6 | 6800 | 580 | Φ2400 | 9130 | Y200L2-6 | 22 | Y112M-4 | 4 | 24194 | |
| FLG-3000 | 3.2 | 11625 | 890 | Φ3000 | 12500 | Y200L-4 | 30 | Y112M-4 | 4 | 42188 |
| Model | Spiral speed (r/min) | Return sand volume (t/d) | Overflow handling capacity (t/d) | Spiral diameter (mm) | Spiral length (mm) | Slope of sink | Drive motor model | Power (kw) | Lifting motor model | Power (kw) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2FLG-1200 | 5,6,7 | 2290-3200 | 310 | Φ1200 | 6500 | 14-18 | Y132M2-6 | 5.5*2 | Y90L1-4 | 1.5*2 | 15840 |
| 2FLG-1500 | 2.5,4,6 | 2240-5360 | 460 | Φ1500 | 8230 | Y160M-6 | 7.5*2 | Y100L1-4 | 2.2*2 | 22903 | |
| 2FLG-2000 | 3.6,5.5 | 6400-10800 | 750 | Φ2000 | 8400 | Y160L-4 | 15*2 | Y100L2-4 | 3.0*2 | 34621 | |
| 2FLG-2400 | 3.63 | 13600 | 1160 | Φ2400 | 9130 | Y200L2-6 | 22*2 | Y112M-4 | 4*2 | 42460 | |
| 2FLG-3000 | 3.2 | 23300 | 1785 | Φ3000 | 12500 | Y200L-4 | 30*2 | Y112M-4 | 4*2 | 73030 |
