Stone Crusher

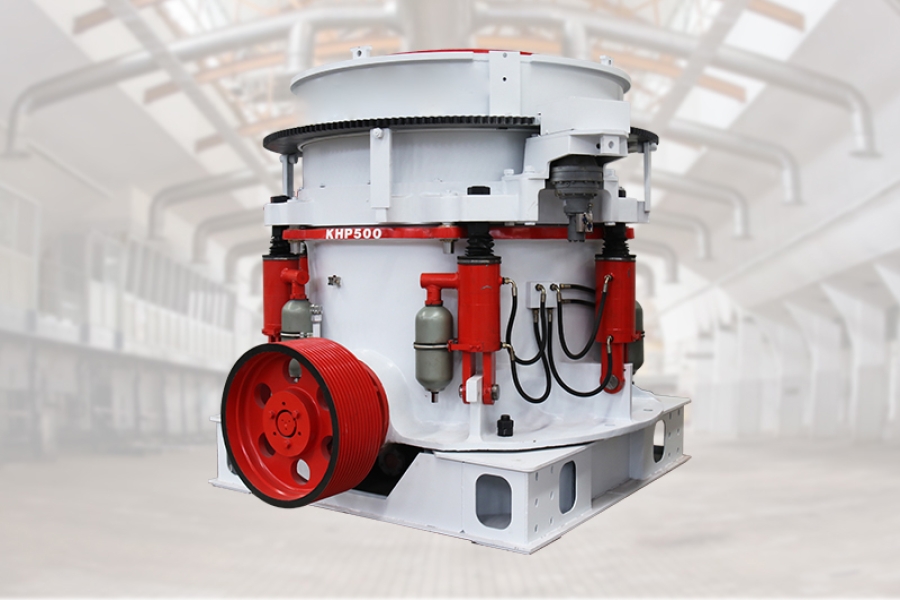

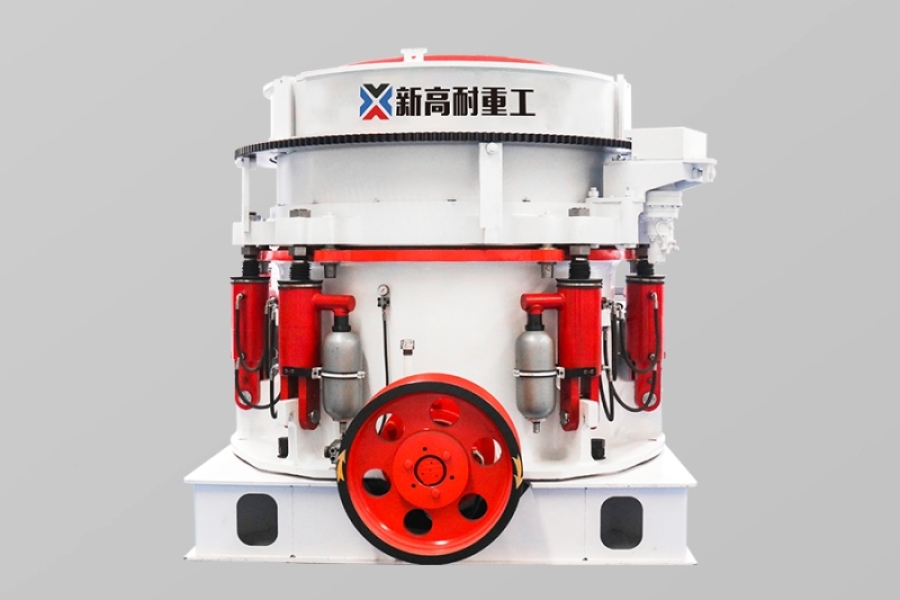

XHP Series Multi Cylinder Hydraulic Cone Crusher

CAPACITY

90-1200t/h

FEED SIZE

≤353mm
Application areas:XHP multi cylinder hydraulic cone crusher is widely used in the secondary crushing of materials in mining, chemical industry, roads and bridges, construction and other fields.
Applicable materials:XHP multi cylinder hydraulic cone crusher is suitable for fine crushing of various hard ores such as granite, river pebbles, iron ore, and non-ferrous metal ores.

PRODUCT INTRODUCTION

XHP series multi cylinder hydraulic cone crusher is a new generation of high-efficiency multi cylinder hydraulic cone crusher launched by our company. This equipment is suitable for crushing various ores and rocks with medium and above medium hardness, such as iron ore, aluminum ore, Bauxite, non-ferrous metal ores, granite, basalt, river pebbles, limestone.

ADVANTAGES

Structural upgrade

The design of transmission rotating parts and lubricating and sealing structure is further optimized, the force of each part is more reasonable, the power conversion is more efficient, and a larger eccentricity and higher speed can be used.

Full hydraulic control

The crushing principle and technical parameters are advanced, and the full hydraulic control is used. The equipment from the safety cavity cleaning to the adjustment and locking, all adopt hydraulic work.

Intelligent automation

Equipped with an integrated hydraulic lubrication system and a centralized automated intelligent control system to monitor the operating status of the equipment in real time.

Good particle shape

The proportion of finished cubes is increased, and the needle-like particles are reduced, which improves the quality of finished products.

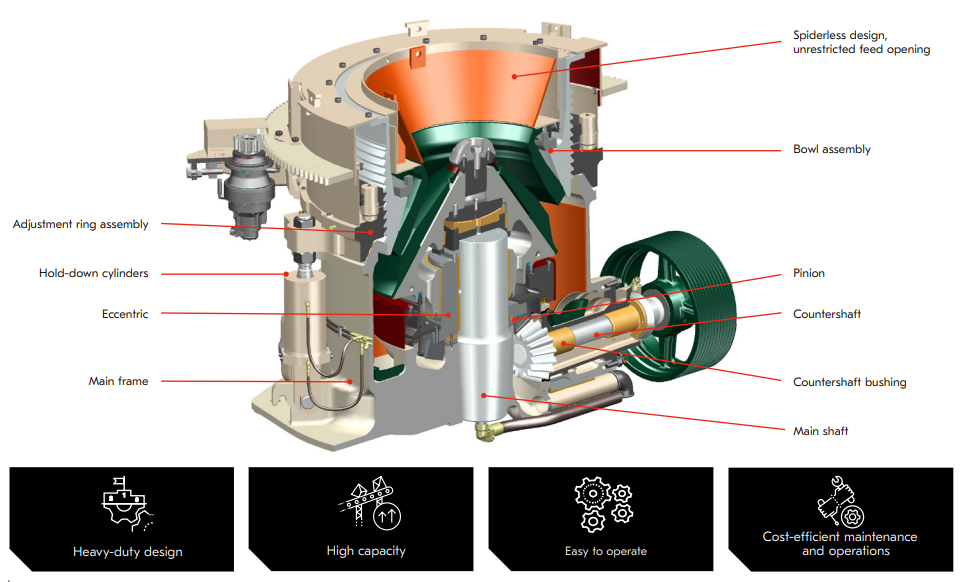

WORKING PRINCIPLE

WORKING PRINCIPLE
The motor drives the horizontal shaft to rotate, and the horizontal shaft is directly transmitted to the gear. The gear drives the eccentric bushing to rotate around the main shaft, and the eccentric bushing drives the moving cone to swing and rotate. The copper bushings inlaid between the main shaft and the eccentric bushing, and between the eccentric bushing and the moving cone act as bearings. Adjust the size of the discharge opening by rotating the fixed cone. The 6 hydraulic cylinders outside the main engine pull the fixed cone to protect the overload and clear the cavity. The whole set of crusher is composed of host machine, lubrication system and electric control system.

Parameters

ModelTypeStandardShort

Power

(kw)

Capacity

(tph)

Max

(mm)

Min

(mm)

Max

(mm)

Min

(mm)

XHP200BC    16090-250
C185197610
M12517546
F9513236
EF  105
XHP300BC23025  220115-440
C210207510
M15015508
F10510206
EF  206
XHP400BC29530  315140-630
C250259010
M19520508
F11014406
EF  306
XHP500BC33030  400175-790
C285259013
M200205510
F13316408
EF  356
XHP800BC35332  630260-1200
C2973215513
M267259210
F21916336
EF
