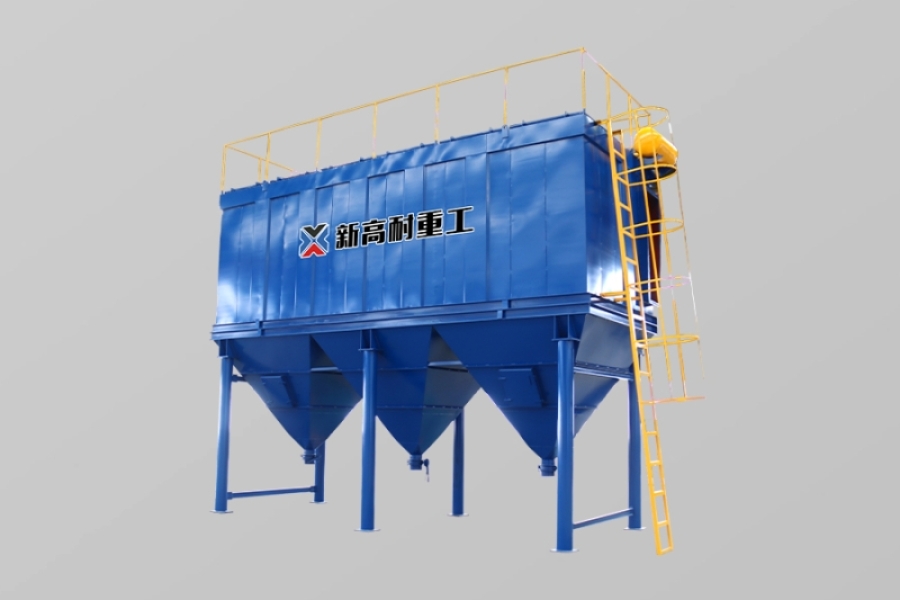

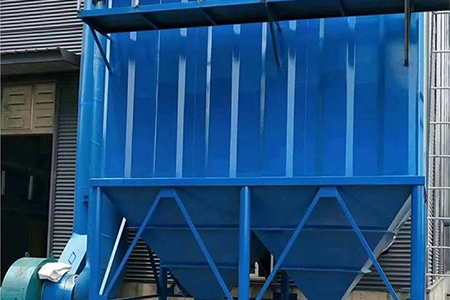

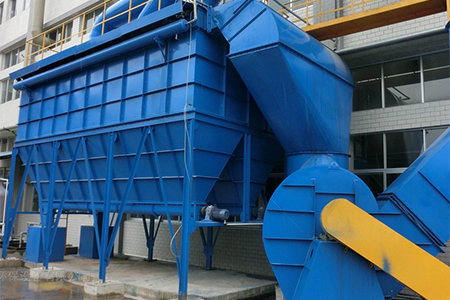

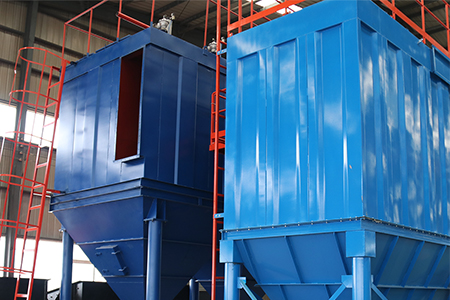

LDMC Series Pulse Bag Filter

CAPACITY

0-336400m³/h

FEED SIZE

---
Application areas:Pulse bag dust collector is widely used in the centralized treatment and purification of smoke and dust in mining, metallurgy, building materials, chemical industry and other industries.
Applicable materials:Pulse bag dust collector is suitable for the purification of various dust-containing gases and the recovery of materials.

PRODUCT INTRODUCTION

The new pulse bag filter improved by Xin Gao Nai Group retains the advantages of high purification efficiency, large gas processing capacity, and long filter bag life,solved the problem of open air placement and low pressure of compressed air source, today, it is widely used in the purification of dusty gas and the recovery of materials in mining, metallurgy, building materials and other industries.

ADVANTAGES

Low airflow resistance

The inlet and outlet air ducts are compactly arranged, and the airflow resistance is small.

Quick maintenance

Adopt the pulse jet dust cleaning technology of chamber-stop wind, high dust removal efficiency, effectively prolonging the cleaning cycle, in turn, the fatigue degree of filter bags and pulse valves is reduced, and the service life of filter bags and valves is improved.

Upper bag change

The keel of the filter bag adopts polygonal shape, and the filter bag has a long service life; The upper bag-drawing method is adopted, and the bag changing operation is convenient.

Airtightness

The box body adopts airtight design, and the inspection door is made of high-quality sealing materials. During the production process, kerosene is used to detect leaks, and the air leakage rate is low.

WORKING PRINCIPLE

LDMC Series Pulse Bag Filter WORKING PRINCIPLE
Under the traction of fan power, the internal, dust removal pipes and dust cover in the dust collector form a negative pressure environment, make the dust -containing gas enter the dust collector under pressure difference, the airflow is filtered by the dust removal filter bag, and the dust is left on the surface of the bag, input pulse signals regularly through the PLC controller to enter the pulse valve, the high -pressure air of the compressed gas will be blew on the dust on the surface of the filter bag and collect it in the ash accumulation to achieve the purpose of recycling the dust, the clean gas after treatment was discharged from the chimney through the dusty fan.

Parameters

Model

Handling air volume

(m³/h)

Entrance concentration

(g/Nm³)

Emission concentration

(mg/Nm³)

Pressure loss

(Pa)

Shell pressure

(Pa)

Number of roomsNumber of filter bags

Filter area

(㎡)

Weight

(kg)

LDMC64-836800<1200≤101470-1770-5000851251214980
LDMC96-427600<1200≤101470-1770-500043843849622
LDMC96-534500<1200≤101470-1770-5000548048012833
LDMC96-641400<1200≤101470-1770-5000657657614223
LDMC96-748300<1200≤101470-1770-5000767267215042
LDMC96-855200<1200≤101470-1770-5000876876816524
LDMC96-962100<1200≤101470-1770-5000986486417905
LDMC96-2*569000<1200≤101470-1770-50001096096023439
LDMC96-2*682800<1200≤101470-1770-500012115296025200
LDMC96-2*796600<1200≤101470-1770-500014134496029400
LDMC96-2*8110400<1200≤101470-1770-500016153696033600
LDMC96-2*9124200<1200≤101470-1770-500018172896037800
LDMC96-2*10138000<1200≤101470-1770-500020192096042000





Model

Handling air volume

(m³/h)

Entrance concentration

(g/Nm³)

Emission concentration

(mg/Nm³)

Pressure loss

(Pa)

Shell pressure

(Pa)

Number of roomsNumber of filter bags

Filter area

(㎡)

Weight

(kg)

LDMC128-667300<1300≤101470-1770-6800676893620224
LDMC128-9100900<1300≤101470-1770-680091152140626400
LDMC128-10112100<1300≤101470-1770-6800101280156131732
LDMC128-2*6134560<1300≤101470-1770-6800121536187436000
LDMC128-2*7157000<1300≤101470-1770-6800141792218643900
LDMC128-2*8179400<1300≤101470-1770-6800162048249850000
LDMC128-2*9201900<1300≤101470-1770-6800182304281055400
LDMC128-2*10224300<1300≤101470-1770-6800202560312360000
LDMC128-2*11247600<1300≤101470-1770-6800222816343565400
LDMC128-2*12269100<1300≤101470-1770-6800243072374872000
LDMC128-2*13291600<1300≤101470-1770-6800263328406078000
LDMC128-2*14314000<1300≤101470-1770-6800283584437284000
LDMC128-2*15336400<1300≤101470-1770-6800303840468590000
