Auxiliary Equipment

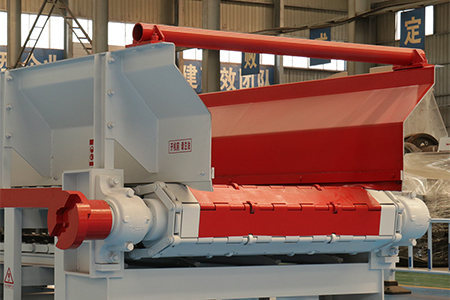

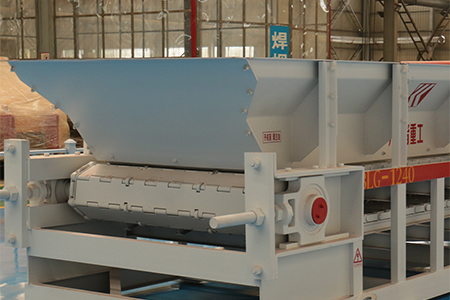

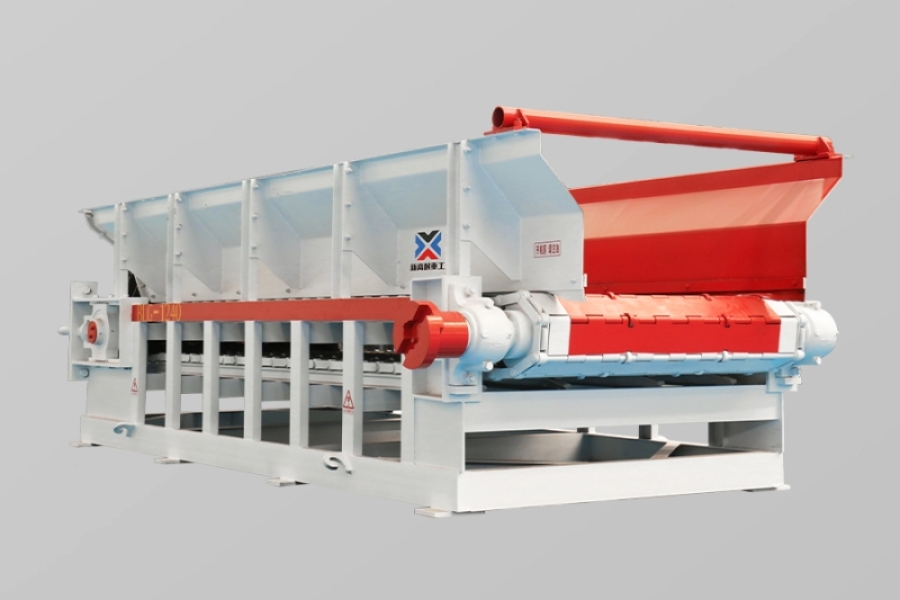

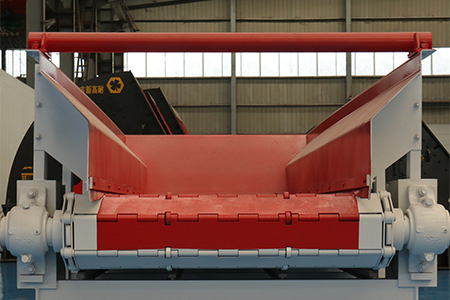

BLG Series Apron Feeder

CAPACITY

200-800t/h

FEED SIZE

≤500mm
Application areas:Plate feeders are widely used in the feeding and transportation links of mining, building materials, sand and gravel yards, mineral processing and other fields.
Applicable materials:Plate feeders is suitable for feeding and short-distance transportation of various coarsely crushed materials such as limestone, iron ore, copper ore, and granite.

PRODUCT INTRODUCTION

Apron feeder is a new type of high-efficiency conveying equipment independently developed by our company on the basis of summarizing many years of experience in conveying equipment design, manufacture and service, and extensively absorbing and applying modern advanced technology. It is suitable for feeding and short-distance conveying of coarse and crushed materials.

ADVANTAGES

Strong pull

Using standard crawler chain drive, high strength, large pulling force, no lubrication, long service life.

Easy installation

Adopt vertical cross reducer, floating suspension installation, easy maintenance.

Stable operation

Driven by a frequency conversion motor, the start and adjustment are stable, and the feeding is uniform and accurate.

Wide application range

The feeding granularity is large, and it is directly installed under the raw material bin, which can withstand large bin pressure and has strong environmental applicability.

WORKING PRINCIPLE

BLG Series Apron Feeder WORKING PRINCIPLE

Parameters

Model

Chain plate width

(mm)

Chain plate length

(mm)

Max feed size

(mm)

Motor power

(kw)

Capacity

(tph)

BLG-08408004000≤5007.5200-250
BLG-104010004000≤50011250-350
BLG-124012004000≤50015400-500
BLG-154015004000≤50018.5600-800
