Auxiliary Equipment

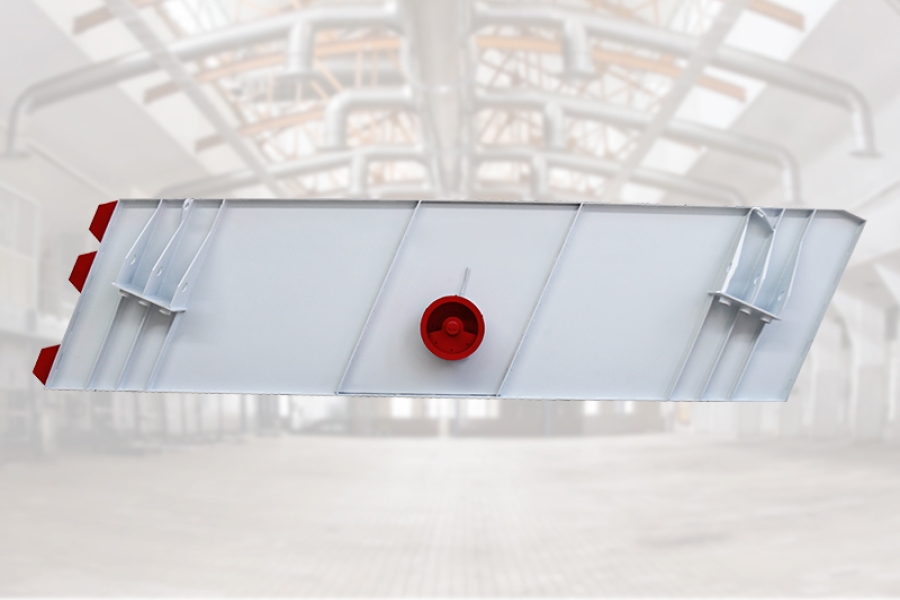

YKQ Series Vibrating Screen

CAPACITY

100-500t/h

FEED SIZE

≤300mm
Application areas:YKQ series vibrating screen is a type of circular vibrating screen and is widely used in screening processes in sand and gravel aggregates, metal mines, coal, chemical industry and other fields.
Applicable materials:YKQ series vibrating screen, commonly known as light screen, is suitable for screening limestone, granite, basalt, non-ferrous metal ores and other materials.

PRODUCT INTRODUCTION

YKQ series vibrating screen commonly known as light sieve, it belongs to a kind of circular vibrating screen,it adopts the current international mature design concept and is suitable for various screening operations such as heavy-duty, medium-sized and fine screening, it is an ideal screening equipment for primary crushing and secondary crushing materials, and can also be used for screening finished materials.

ADVANTAGES

More stable performance

High-quality rubber composite spring support has the advantages of long service life, fast over-resonance zone, stable operation, low noise, and small impact on the foundation.

Adjustable amplitude

The shaker adopts external eccentric structure, the size of the excitation force can be adjusted to meet the requirements of different processing capacity.

Excellent quality

Branded bearings, transmission shafts, high-quality high-manganese steel woven screens, high-quality components, and longer service life.

Specifications can be selected

The structure of the screen machine is simple, and the screen is easy to replace. According to the needs of users, it can be installed with screens with different layers and apertures to meet the needs of users with different specifications and materials.

WORKING PRINCIPLE

YKQ Series Vibrating Screen WORKING PRINCIPLE
With the excitement of the vibration motor (eccentric block or eccentric axis), the sieve body is performed in the direction of the torment, the processing raw materials beating on the screen of the screen,the processing raw materials of different performances of the processing raw materials of different performances are regularized to the required sieve network surface through different sieve holes, and then transported to the designated area, for the purpose of metric or discrimination, the magnitude of the vibration can be adjusted by adjusting the weight of the chucky block.

Parameters

Model
Sieve mesh layer number

Sieve mesh surface area

(㎡)

Vibration amplitude

(mm)

Vibration frequency

(r/min)

Motor power

(kw)

Capacity

(tph)

2YKQ154526.755-798011100-200
3YKQ154536.755-798015100- 200
2YKQ1860210.85-798015160-220
3YKQ1860310.85-798022160-200
4YKQ1860410.85-798022160-200
2YKQ20602125-798022150-250
3YKQ20603125-798022150-250
4YKQ20604125-798030150-250
2YKQ2460214.45-798022150-280
3YKQ2460314.45-798030150-280
4YKQ2460414.45-798037150-280
2YKQ2470216.85-798022240-300
3YKQ2470316.85-798037240-300
4YKQ2470416.85-798037240-300
2YKQ30802215-798030400-500
3YKQ30803215-798037400-500
4YKQ30804215-798055400-500
