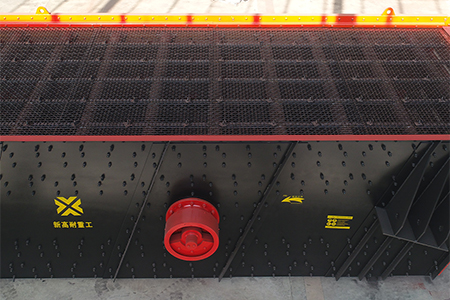

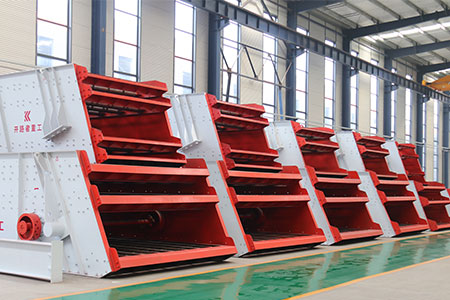

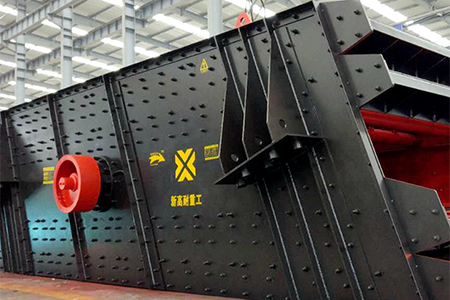

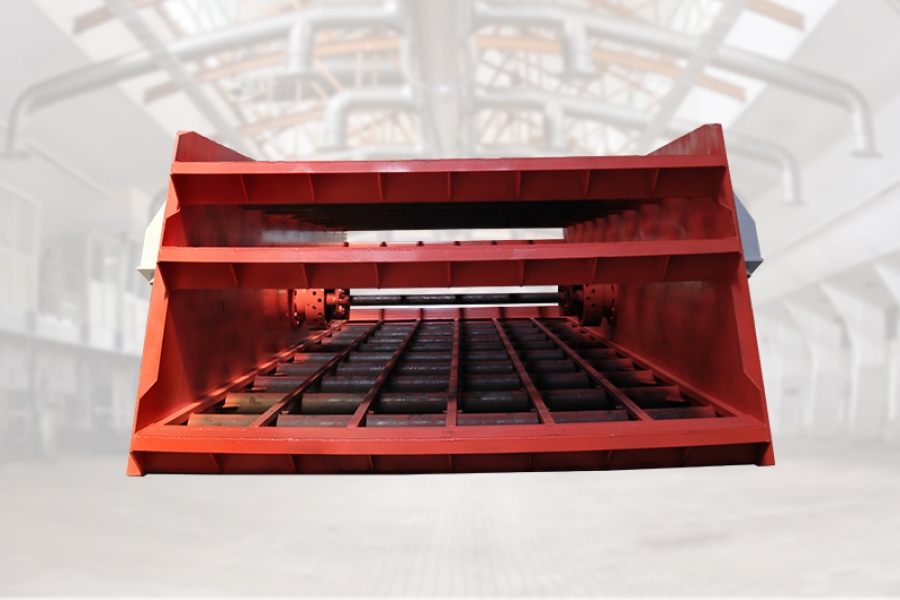

YKZ Series Vibrating Screen

CAPACITY

180-1000t/h

FEED SIZE

≤400mm

Application areas：YKZ series vibrating screen is a large excitation force vibrating screen, which is widely used in the screening process of sand and gravel aggregates, metal mines, coal, chemical industry and other fields.

Applicable materials：YKZ series vibrating screen, commonly known as medium vibrating screen, is suitable for screening materials such as limestone, granite, basalt, non-ferrous metal ores, etc.

GET A QUOTE CHAT NOW

Introduction
Advantages
Working principle
Parameters

PRODUCT INTRODUCTION

The YKZ series vibration sieve is called the medium vibration screen. It is a high -intensity, large excitement round vibration sieve developed by our company's combination of international vibration screen manufacturing technology, it has a significant advantage of great processing capacity and good grading effect,it is a key screening equipment in various industrial production,it is especially suitable for granular operations such as gravel, coal, ore, and chemical raw materials.

ADVANTAGES

More efficient production

The production of a single machine can reach 1,000 tons, which effectively reduces the number of vibration sieves and the number of belts in the entire production line, and reduces the cost of input and maintenance costs.

Running more smoothly

Vibrating ornamental side plate and beam are connected by high-strength ring groove rivets, and the side plate has no welding point and no welding stress, so the whole vibrating screen is more reasonable in force and more stable in operation.

More stable performance

Brand bearings, brand drive shafts, high quality high manganese steel woven screen, universal joint coupling connecting shaker, long service life.

More diverse specifications

Simple structure of the sieve machine, screen mesh replacement is convenient; according to user needs can be customized to install the number of layers, the aperture is not the same as the screen, screen out different specifications of the finished material.

WORKING PRINCIPLE

YKZ series circular vibrating screen is to utilize the electric motor to drive the exciter to rotate through the tire-type coupling, and force the screen body to make periodic reciprocating vibration equipment. The materials continuously do bouncing and tumbling movement on the inclined screen surface, Through repeated comparison with the sieve holes, materials smaller than the size of the sieve through the sieve, materials larger than the size of the sieve holes on the sieve surface, thus completing the screening process, to achieve the purpose of screening.

Parameters

Model	Sieve mesh layer number	Sieve mesh surface area (㎡)	Vibration amplitude (mm)	Vibration frequency (r/min)	Motor power (kw)	Capacity (tph)
2YKZ2060	2	12	6-9	980	30	180-280
3YKZ2060	3	12	6-9	980	30	180-280
4YKZ2060	4	12	6-9	980	45	240-300
3YKZ2270	3	15.4	6-9	980	45	240-320
4YKZ2270	4	15.4	6-9	980	45	200-260
1YKZ2460	1	14.4	6-9	970	22	300-350
2YKZ2460	2	14.4	6-9	980	30	240-300
3YKZ2460	3	14.4	6-9	980	30	240-300
4YKZ2460	4	14.4	6-9	980	45	240-300
2YKZ2670	2	18.2	6-9	980	37	280-400
3YKZ2670	3	18.2	6-9	980	45	280-400
4YKZ2670	4	18.2	6-9	990	75	280-400
2YKZ3080	2	21	6-9	980	37	450-550
3YKZ3080	3	21	6-9	980	55	400-500
4YKZ3080	4	21	6-9	990	75	450-550
2ZXS3280	2	25.6	6-9	970	45*2	600-800
3ZXS3280	3	25.6	6-9	970	55*2	600-800
2ZXS3680	2	28.8	6-9	970	55*2	600-800
3ZXS3680	3	28.8	6-9	970	75*2	600-800
2ZXS10400	2	40	6-9	980	75*2	800-1000
3ZXS10400	3	40	6-9	960	90*2	800-1000
