Sand Crusher

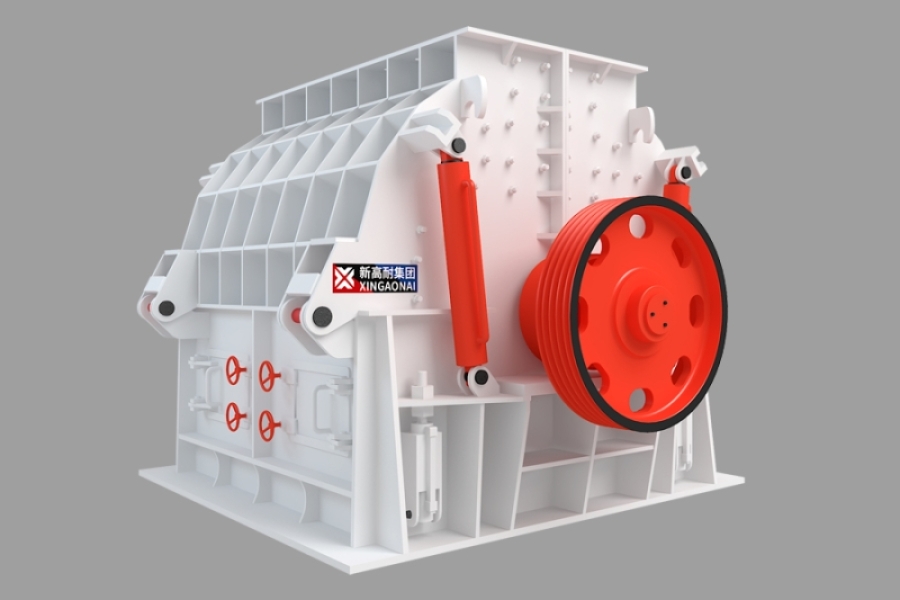

PCK Series Sand Making Machine

CAPACITY

20-150t/h

FEED SIZE

≤700mm

Application areas：Single rotor reversible sand making machine is widely used in the crushing and sand making of materials in mining, quarries, building materials, commercial mixing stations and other fields.

Applicable materials：Single rotor reversible sand making machine integrates the advantages of hammer crusher and impact crusher, and is suitable for crushing and making sand making operations of limestone, gangue, shale and other raw materials.

GET A QUOTE CHAT NOW

Introduction
Advantages
Working principle
Parameters

PRODUCT INTRODUCTION

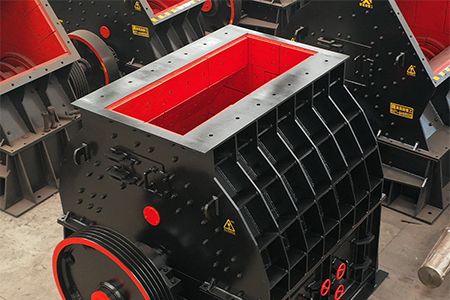

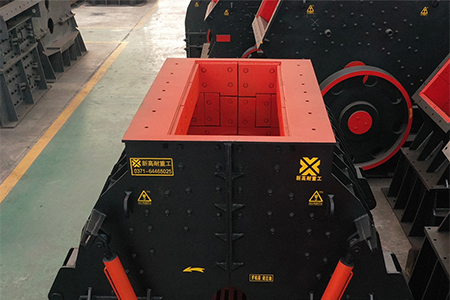

PCK series single-rotor reversible sand making machine is suitable for fine crushing of river pebbles, granite, limestone and other raw materials. It overcomes the characteristics that traditional sand making equipment is only suitable for soft rock and materials below 150 MPa. The number is more suitable for the requirements of commercial concrete mixing plants. The hourly output is 20-150 tons, and the models are complete and can be customized on demand.

ADVANTAGES

Rhombus hammer plate

Unique diamond-shaped hammer plate structure, more effective crushing and grinding.

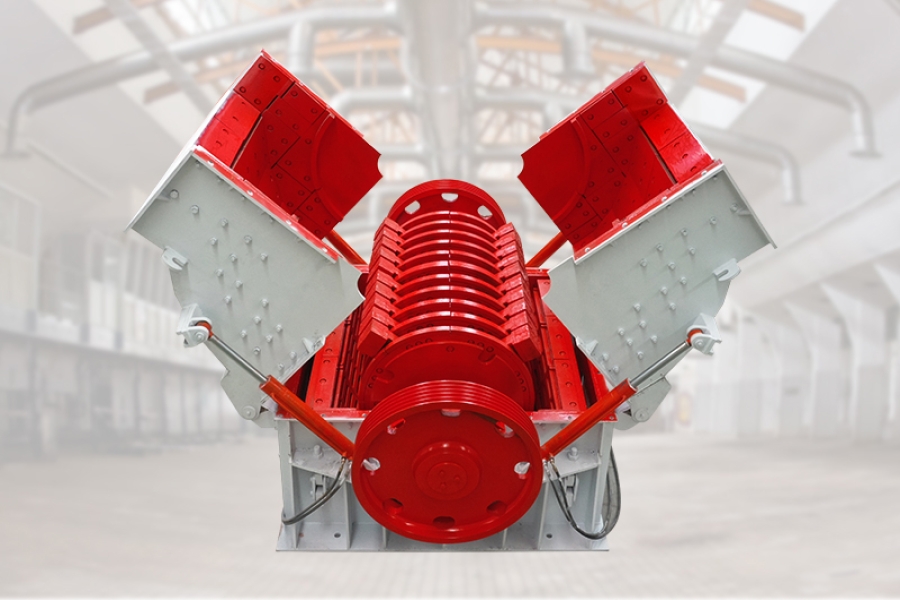

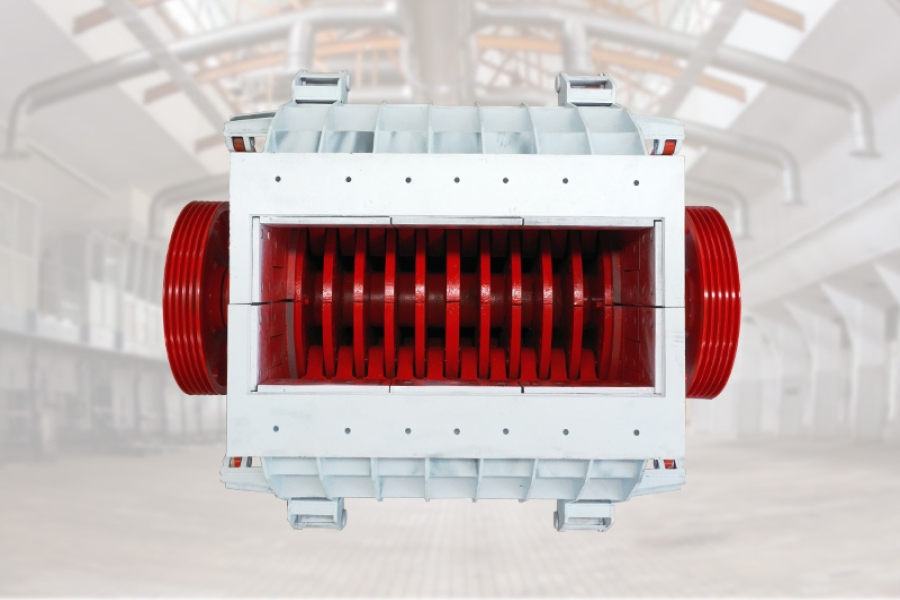

Torx rotor

The rotor is attached with a high manganese and high chromium protective sleeve.

Hammer head reversible

After one side of the hammer head is severely worn, there is no need to turn it over manually, and the other side can be used in reverse, saving time and effort, and improving the crushing efficiency during production.

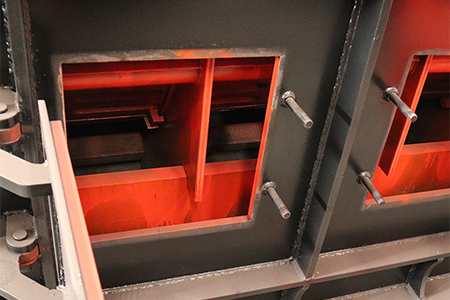

Observation door

The sand making machine is equipped with observation doors on the front, rear, left, and right sides, so that the internal operation of the machine can be observed at any time, and the material can be checked and cleaned in time when the material is blocked.

WORKING PRINCIPLE

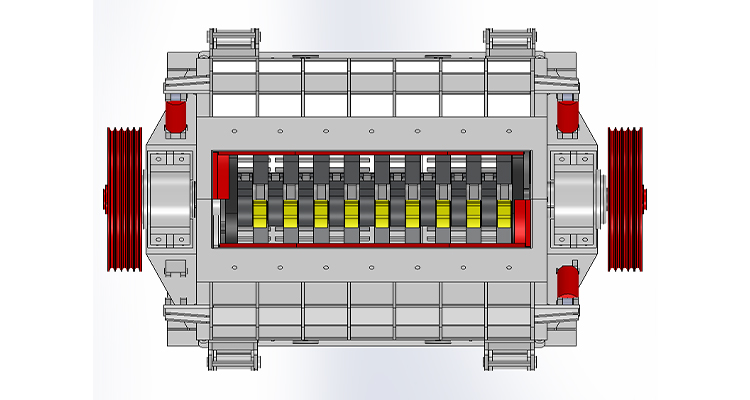

The material enters the cavity of the sand making machine from the feeding hopper, and collides with the hammer head on the relatively high-speed rotating rotor in the sand making machine. It will be counterattacked on the hammer head of the first rotor for another blow, and the finished material with granularity obtained through multiple cycles will be discharged through the outlet controlled by the grate.

Parameters

Model	Rotor diameter*length (mm)	Feeding port size width*length (mm)	Motor power (kw)	Capacity (tph)
PCK0808	800*800	800*350	75	20-40
PCK1010	1000*1000	1000*400	55*2	40-50
PCK1013	1000*1300	1300*500	75*2	60-80
PCK1215	1200*1500	1500*500	110*2	80-100
PCK1318	1300*1800	1800*600	132*2	100-120
PCK1520	1500*1200	2000*700	160*2	120-150
