Stone Crusher

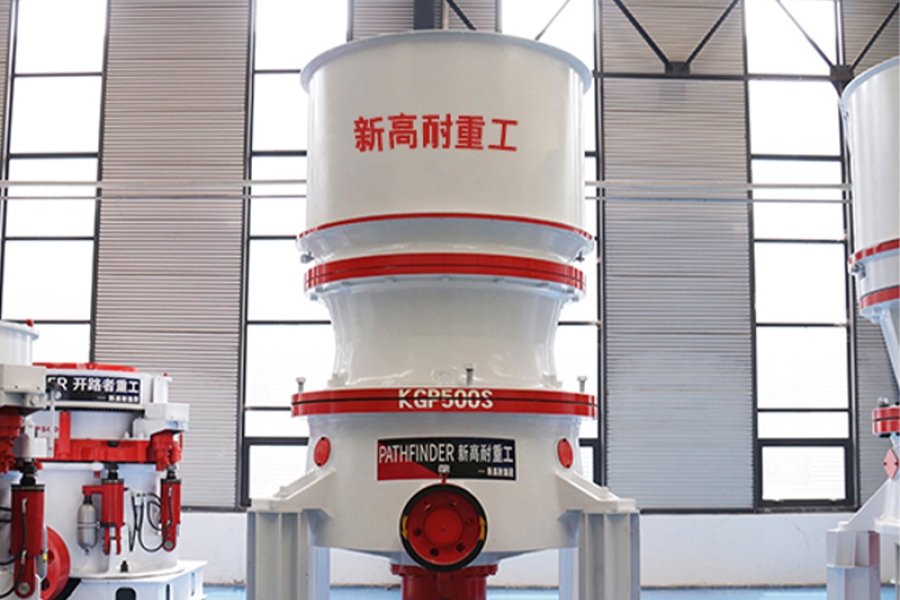

XGP Series Single Cylinder Hydraulic Cone Crusher

CAPACITY

35-1400t/h

FEED SIZE

≤420mm
Application areas:XGP series single-cylinder hydraulic cone crusher is widely used in the secondary crushing of materials in mining, chemical industry, roads and bridges, construction and other fields.
Applicable materials:XGP series single-cylinder hydraulic cone crusher is a new type of intelligent cone crusher, suitable for fine crushing of various hard ores such as granite, river pebbles, iron ore, and non-ferrous metal ores.

PRODUCT INTRODUCTION

XGP single-cylinder hydraulic cone crusher is a combination of mechanical, hydraulic, automation, intelligent control and other technologies. It is suitable for medium and fine crushing of medium-hard materials. It has simple and reliable structure, low failure rate, low production cost and strong operation stability. With the advantages of convenient maintenance, it is widely used in metallurgy, construction, hydropower, transportation, building materials and other industrial fields, and occupies an important share in the market.

ADVANTAGES

Optimized design

The body has higher strength and more reliable operation. The optimized design of the crushing chamber ensures high lamination crushing efficiency, while the crushing effect of the equipment is not affected by the wear of the liner.

Multi-cavity switching

The fully automatic control system provides users with various control modes such as manual control, automatic loading, and automatic double discharge ports.

Integrated hydraulic lubrication

The hydraulic system adopts high-pressure design to meet the general pressure requirements, and the equipment operates with high pressure, which improves the reliability of the hydraulic system.

Low maintenance cost

Spherical bearings are used to replace the bushing design, which prolongs the life of the bearings.

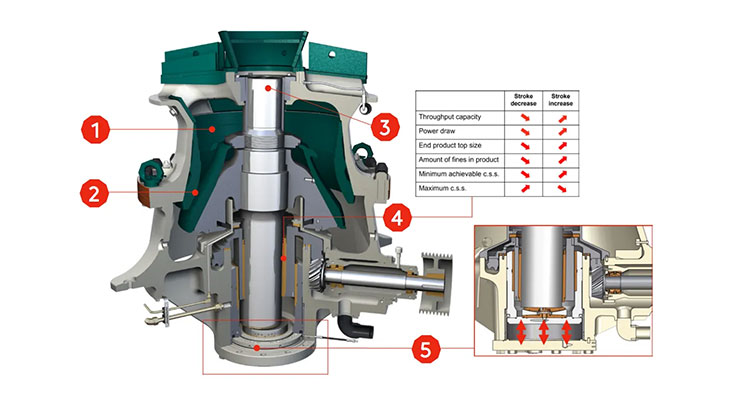

WORKING PRINCIPLE

WORKING PRINCIPLE
The rotation of the motor drives the pulley or coupling, the drive shaft and the conical part to make the eccentric shaft do periodic swinging motion under the axis line. After the material enters the crushing cavity from the feed port, it is squeezed, ground and kneaded by the mutual impact of the eccentric shaft and the wall of the rolling socket to produce crushing effect. The hydraulic insurance system can remove the fault objects from the top of the support sleeve and the fixed cone through hydraulic pressure when the machine has an iron fault or a stuffy car.

Parameters

ModelType

Feed port

(mm)

Max feed size

(mm)

Discharge port size

(mm)

Motor power

(kw)

Host weight

(kg)

Capacity

(tph)

XGP100A1501207-3990580035-135
B130105
C10085
XGP200A22518012-45200-2201270085-350
B150120
C8060
XGP300A22518010-50250-28016700140-490
B150125
C8060
XGP500A28022012-45315-35527000245-715
B150125
C10080



ModelType

Feed port

(mm)

Max feed size

(mm)

Discharge port size

(mm)

Motor power

(kw)

Host weight

(kg)

Capacity

(kg)

XGP100SA32025035-10075-909500140-520
B250210
XGP200SA34028035-105160-20013400160-610
B250210
XGP300SA38032035-100220-25018200250-870
B280240
XGP500SA50042045-105280-31532700300-1400
B380320
