XFH Series Composite Cone Crusher

CAPACITY

80-610t/h

FEED SIZE

≤300mm
Application areas:XFH series compound cone crusher is widely used in the secondary and tertiary crushing links of materials in mining, chemical industry, roads and bridges, construction and other fields.
Applicable materials:XFH series compound cone crusher is suitable for fine crushing of various hard ores such as granite, river pebbles, iron ore, and non-ferrous metal ores.

PRODUCT INTRODUCTION

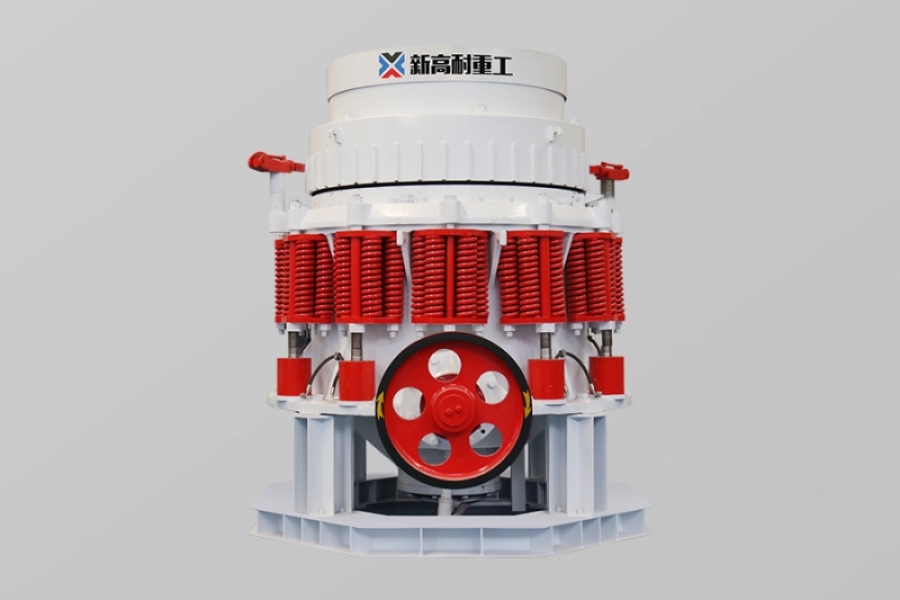

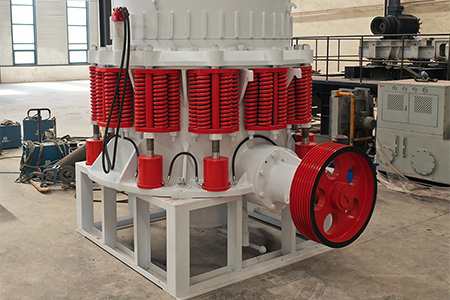

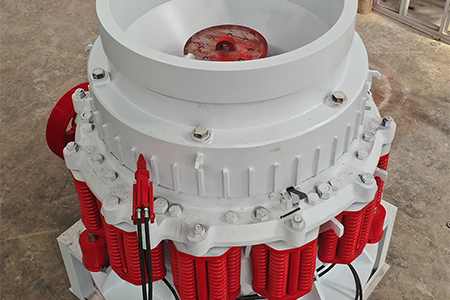

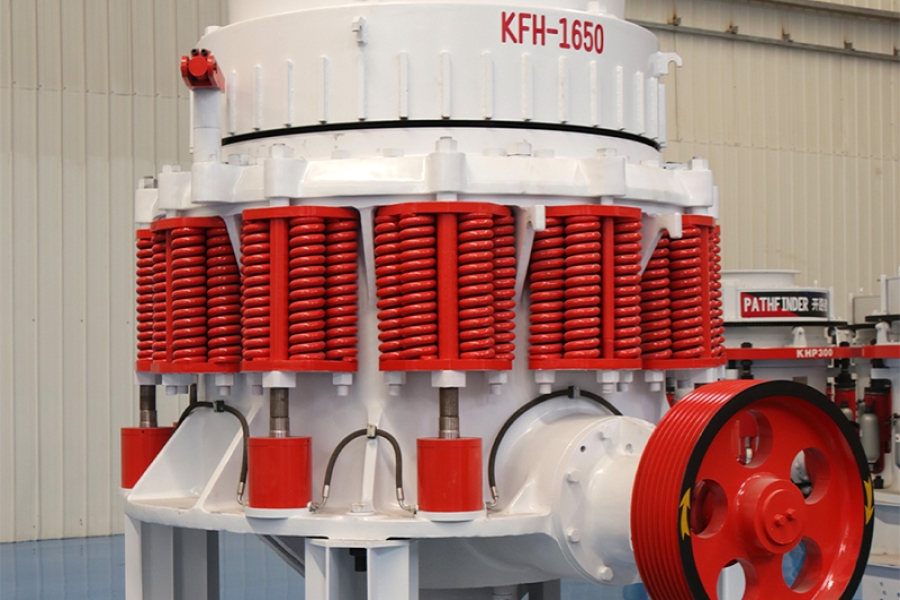

XFH Series Composite cone crusher is suitable for hydropower, construction, highway, mining and other industries. It is a comprehensive cone crusher with spring and hydraulic cylinder in the cone crusher. The composite cone crusher has four kinds of crushing chambers to choose from, which are Coarse, Medium, Fine, Extra Fine.

ADVANTAGES

High processing capacity

High performance and high frequency, using the principle of laminated crushing.

Reliable operation

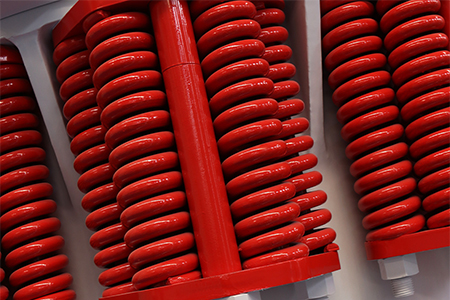

It is sealed with grease to avoid the disadvantages of easy blockage of water supply and drainage system and the defect of easy mixing of water and oil.

Reasonable design

The structure is simple, easy to operate and maintain, and reduces downtime.

Low failure rate

It is easy to use, easy to realize automation, and the equipment failure rate is reduced by 90%.

WORKING PRINCIPLE

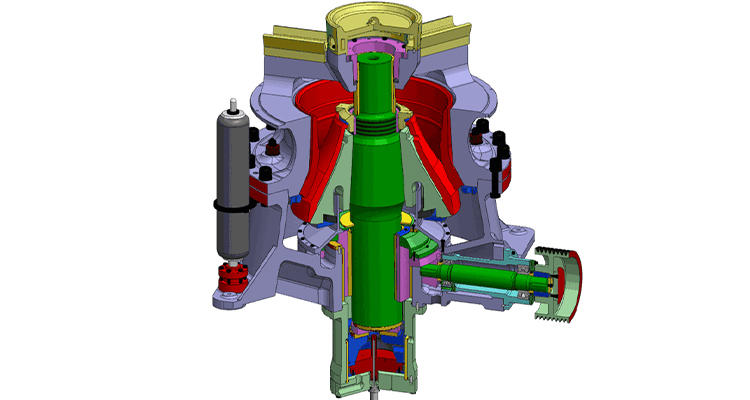

XFH Series Composite Cone Crusher WORKING PRINCIPLE
The working principle of the compound cone crusher: when working, the rotation of the motor passes through the pulley or the linkage shaft, the drive shaft of the cone crusher and the cone part of the cone crusher are forced by the eccentric sleeve to perform a swinging motion around a fixed point. Therefore, the crushing wall of the crushing cone is sometimes close to and sometimes away from the surface of the mortar wall fixed on the adjusting sleeve, so that the ore is continuously impacted, squeezed and bent in the crushing cavity to realize the crushing of the ore.

Parameters

Model
Type

Offset value

(mm)

Max feeding size

(mm)

Discharge port adjustment range

(mm)

Capacity

(tph)

Main motor power

(kw)

Weight

(t)

XFH1650C-DCoarsely3430022-65265-61025035
XFH1650Z-DMedium3424019-65240-61025035
XFH1650S-XFinely2813016-40200-32025035
XFH1400C-DCoarsely3023519-65210-53022025
XFH1400Z-XMedium2518016-50180-47522025
XFH1400S-XFinely258013-30150-25022025
XFH1200C-DCoarsely2220016-51150-39013216
XFH1200Z-DMedium2215013-40115-24513216
XFH1200S-XFinely159010-2580-17013216
