Mobile Crusher

Tracked Mobile Cone Crusher

CAPACITY

500 t/h

FEED SIZE

225mm

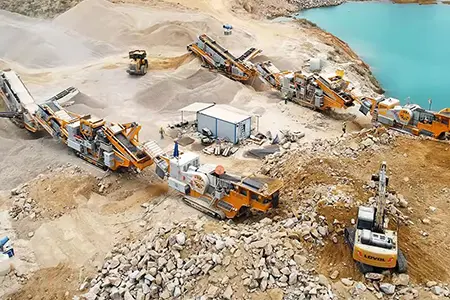

Application areas：Suitable for secondary and tertiary crushing in mining, quarries, highway, railway, and hydropower engineering projects, as well as metal ore processing, contract crushing, and remote operations requiring frequent site relocation.

Applicable materials：Capable of processing hard rocks such as granite and basalt, metal ores including iron, copper, and gold, as well as river pebbles, quartzite, pre-crushed construction waste, and recycled concrete.

GET A QUOTE CHAT NOW

Introduction
Advantages
Working principle
Parameters

Product Overview

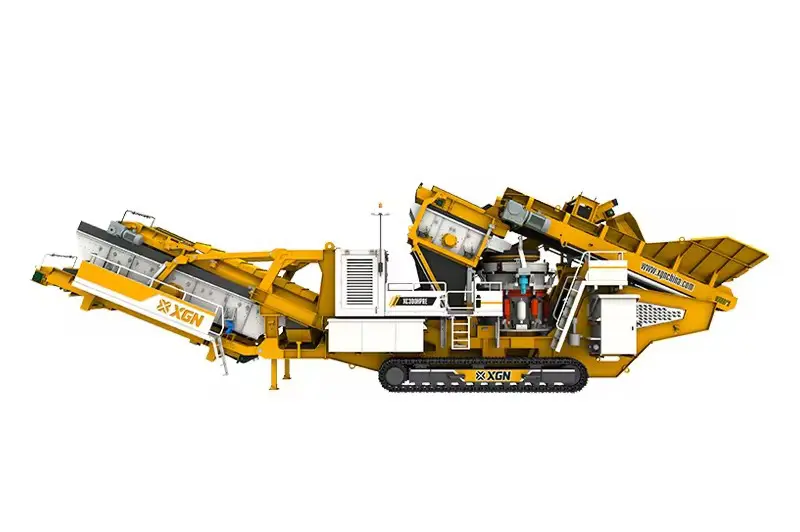

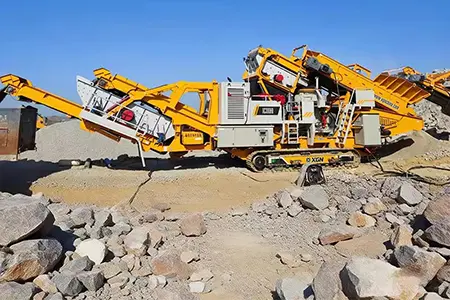

The Xingaonai tracked mobile cone crusher is a high-performance mobile crushing unit designed for secondary and tertiary crushing applications. The main crusher is equipped with an advanced multi-cylinder hydraulic cone crusher, utilizing the lamination crushing principle to produce excellent particle shape with minimal flakiness. The whole machine is mounted on a heavy-duty tracked undercarriage, allowing it to move easily within a quarry and between different job sites. This unit is specifically designed to handle hard, abrasive materials such as granite, basalt, and iron ore, delivering high capacity and superior product quality.

Key Advantages

Lamination Crushing for Superior Product Shape

The cone crusher applies the lamination crushing principle, where materials are compressed between the mantle and concave liner, forming a multi-layer crushing action. This produces cubical, well-shaped aggregates with minimal flakiness, making it ideal for high-grade concrete and asphalt production.

Heavy-Duty Undercarriage with Excellent Mobility

The heavy-duty tracked chassis provides strong traction on rugged terrain. The unit is compact for transport on low-bed trailers and offers rapid setup time on site.

High Capacity and Reduction Ratio

Featuring a robust crushing chamber design with a high pivot point and large feed opening, the unit delivers high throughput with a large reduction ratio. The optimized combination of crushing chamber, eccentric stroke, and speed ensures efficient crushing of hard and abrasive materials.

Automated Crushing Control System

The unit features an advanced automation system with one-button start/stop, real-time monitoring of feed rate and crusher load, automatic wear compensation based on liner wear, and remote monitoring via telematics.

Working Principle

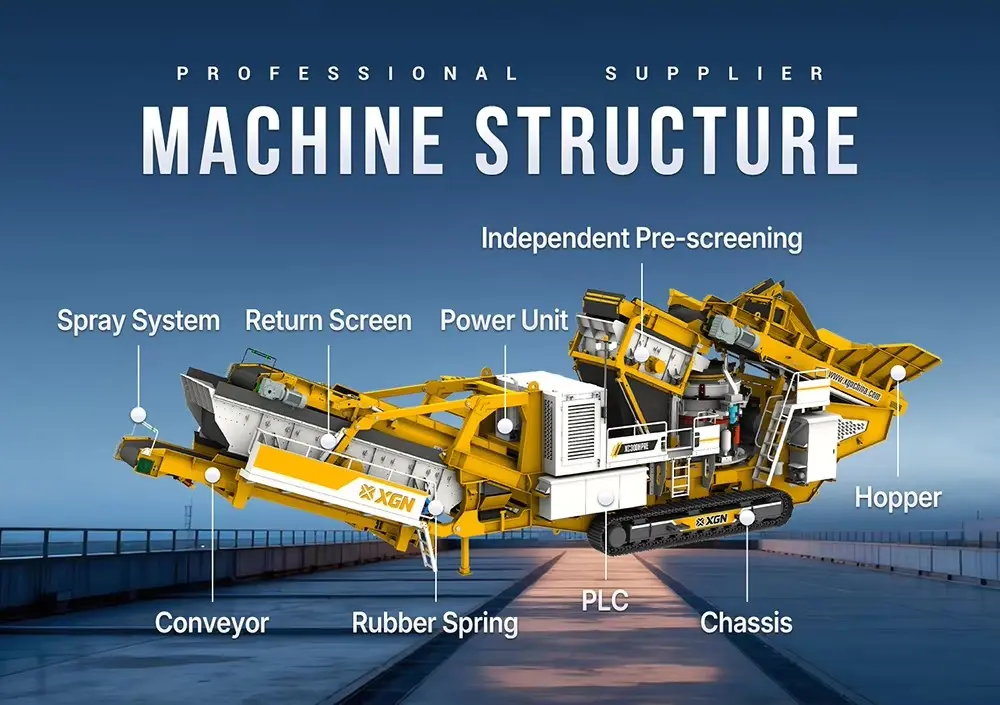

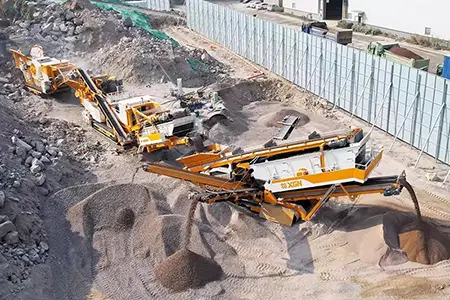

The tracked mobile cone crusher integrates a tracked undercarriage, chassis frame, cone crusher unit, feeding system, and discharge conveyor into an integrated mobile crushing plant. An excavator or wheel loader feeds material into the large hopper, and a vibrating feeder or belt feeder ensures uniform distribution of material onto the crusher feed conveyor. The material then enters the cone crusher chamber, where the rotating mantle gyrates eccentrically within the concave liner, and the material is compressed, crushed, and ground multiple times between the mantle and concave through multi-layer lamination action, producing a consistent output with excellent cubical shape. An optional integrated screen module or independent mobile screen can be added to screen the material into multiple products, with oversize material returned to the crusher via a recirculating conveyor for additional crushing. Finally, the crushed material is discharged via the main conveyor belt onto a stockpile or directly into trucks. The entire process can be monitored and controlled remotely, ensuring optimal performance and safety, while the closed crushing circuit ensures a consistent product gradation with minimal over-crushing, maximizing yield and efficiency.

Technical Parameters

Model	XC-300S	XC-300SR	XC-300H	XC-300HRE	XC-300HR
Feeding equipment
Capacity(m³)	6.5	6.5	6.5	6.5	6.5
Feeding height(mm)	2870	2870	2870	2870	2870
Maximum size(mm)	225	225	225	225	225
Feeding capacity(t/h)	500	500	500	500	500
Crusher Type
Crusher Type	Single cylinder	Single cylinder	Multi-cylinder	Multi-cylinder	Multi-cylinder
Vibrating screenlength x width(mm)	/	1540×3600	/	1540×3600	1540×3600
Screen layers	/	1	/	1	1
Discharging rangemm)	25-54	25-54	10-45	10-45	10-45
Belt Conveyor
Main belt conveyor(mm)	1200	1200	1200	1200	1200
Transfer belt conveyor width(mm)	500	500	500	500	500
Width of return belt conveyor(mm)	500	500	500	500	500
Finished material conveyor belt width(mm)	1200	1200	1200	1200	1200
Finished product belt conveyor stacking height（mm）	3419	3419	3419	3419	3419
Complete Machine
Complete Machin(kw)	308.7	338.7	308.7	338.7	338.7
Host power(kw)	250	250	250	250	250
Capacity(t/h)	290-495	290-495	150-430	150-430	150-430
Walking speed(km/h)	0.6-1	0.6-1	0.6-1	0.6-1	0.6-1
Machine weight(t)	52	57	55	64	60
dimensions: length xwidth x height(mm)	13850×3200×3800	18357×3300×3800	14850×3200×3800	19247×3070×3731	19247×3070×3731
